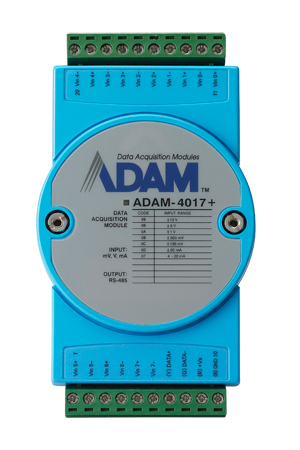

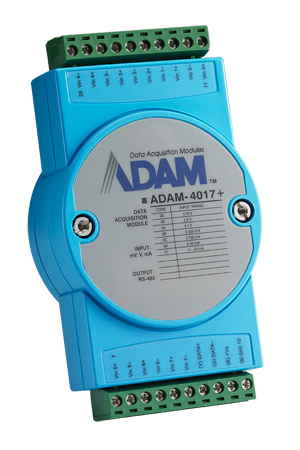

Advantech - ADAM-4017+-CE
8-channel analogue input module with Modbus
Listprice:
£234.03*
Dealer price - Login
Delivery time: Goods are ordered, available again shortly
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
ADAM-4017+-CE
Our article number:
260065
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - ADAM-4017+-CE"
The ADAM-4017+ is a 16-bit, 8-channel analogue input module that offers programmable input ranges on all channels. These modules are a highly cost-effective solution for industrial measurement and monitoring applications. 3000 VDC optical isolation between the analogue input and the modules protects the modules and peripherals from damage due to high input voltages.
Scope of delivery: Advantech ADAM-4017+-CE
Scope of delivery: Advantech ADAM-4017+-CE
| I/O Interfaces: | Analog Input |
|---|
Features
- 8-channel analogue input (current or voltage)
- Protocols: Modbus RTU,ASCII
- Watchdog timer for system recovery
- 3000VDC isolation protection
Technical details
Display
Power supply
Analogue input
General
Display
- LED indicators: Power
Power supply
- Power requirement: 10~30 VDC
Analogue input
- Channel independent configuration: Yes
- Sampling rates: 10 samples / second
- Resolution: 16-bit
- Channels: 8
- Voltage range: ± 150 mV ± 500 mV ± 1 V ± 5 V ± 10 V
- Current input: ± 20 mA, 4 ~ 20 mA
- Input impedance: voltage: 20 MOhm, current: 120 Ohm
- Span drift: ± 25 ppm / ° C
- Zero drift: ± 6 µV / ° C
- CMR at 50/60 Hz: 120 dB
- NMR at 50/60 Hz: 100 dB
General
- Watchdog timer: System (1.6 seconds) & Communication
- Connector: 2 x plug-in terminal block (No. 14 ~ 22 AWG)
- Operating temperature: -10 to 70 ° C (14 to 158 ° F)
- Humidity: 5~95 %RH
- Storage temperature: -25 to 85 ° C (-13 to 185 ° F)
- Interface: RS-485
- Isolation protection: 3000 VDC
- Communication protocol: ASCII command & Modbus / RTU
- Communication speed: From 1,200 to 115.2 k
- Comm. Distance: 1.2 km
- Data flow control: Yes
