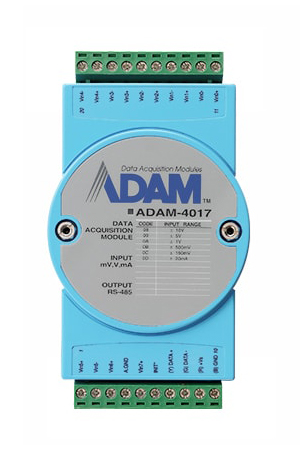

Advantech - ADAM-4017-D2E
8-channel analogue input module
Listprice:
£153.99*
Dealer price - Login
61 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
ADAM-4017-D2E
Our article number:
260002
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - ADAM-4017-D2E"
The ADAM-4017 is a 16-bit, 8-channel analogue input module that offers programmable input ranges on all channels. This module is a highly cost-effective solution for industrial measurement and monitoring applications. The opto-isolated inputs provide 3000 VDC isolation between the analogue input and the module, protecting the module and peripherals from damage due to high input voltages. The ADAM-4017 provides signal conditioning, A/D conversion, ranging and RS-485 digital communication functions. The module protects your equipment from ground loops and surges by providing opto-isolation of the A/D input and transformer isolation up to 3000 VDC. The ADAM-4017 uses a microprocessor-controlled 16-bit sigma-delta A/D converter to convert sensor voltage or current into digital data. The digital data is then translated into engineering units. When prompted by the host computer, the module sends the data to the host via a standard RS-485 interface.
Scope of delivery: Advantech ADAM-4017-D2E
Scope of delivery: Advantech ADAM-4017-D2E
| I/O Interfaces: | Analog Input |
|---|
Features
- 8-channel analogue input (voltage or current)
- Protocols: ASCII
- Watchdog timer for system recovery
Technical details
Display
Power supply
Analogue input
General
Display
- LED indicators: Power
Power supply
- Power requirement: 10~30 VDC
Analogue input
- Sampling rates: 10 samples / second
- Resolution: 16-bit
- Channels: 8
- Voltage range: ± 150 mV ± 500 mV ± 1 V ± 5 V ± 10 V
- Current input: ± 20 mA
- Input impedance: 20 MOhm
- Span drift: ± 25 ppm / ° C
- Zero drift: ± 6 µV / ° C
- CMR at 50/60 Hz: 92 dB
General
- Watchdog timer: Yes
- Connector: 2 x plug-in terminal block (No. 14 ~ 22 AWG)
- Operating temperature: -10 to 70 ° C (14 to 158 ° F)
- Humidity: 5~95 %RH
- Storage temperature: -25 to 85 ° C (-13 to 185 ° F)
- Interface: RS-485
- Isolation protection: 3000 VDC
- Communication protocol: ASCII command
- Communication speed: From 1,200 to 115.2 k
- Comm. Distance: 1.2 km
- Data flow control: Yes
