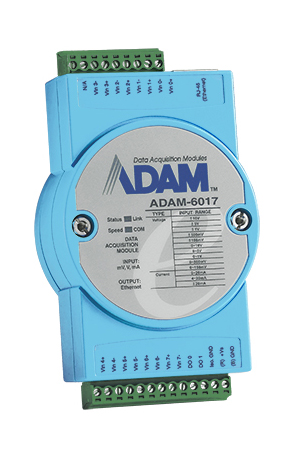

Advantech - ADAM-6017-D
8-channel isolated analogue input Modbus TCP module with 2-channel DO
Listprice:
£245.34*
Dealer price - Login
9 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
ADAM-6017-D
Our article number:
260233
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - ADAM-6017-D"
The ADAM-6017 is equipped with 8 analogue inputs and 2 digital outputs to meet all plant requirements. An individual range can be configured for each analogue channel for a variety of applications.
Scope of delivery: Advantech ADAM-6017-D
Scope of delivery: Advantech ADAM-6017-D
I/O Interfaces: | Analog Input, Digital Output |
---|---|
Interface: | Ethernet |
Protocol: | ModBus, TCP, UDP |
Temperature Range: | Standard Temperature Range |
Features
- 8-channel analogue input (voltage or current)/2-channel digital output
- Protocols: MQTT(TLS),SNMP, Modbus TCP, RESTful, ASCII
- GCL to execute basic logical control rules
- Peer-to-peer function to map I/O status
- Cloud access: data update on Azure
- Built-in web server
- Watchdog timer for system recovery
Technical details
Display
Power supply
General
Analogue input
Digital output
Display
- LED indicators: status, communication, connection, speed
Power supply
- Power requirement: 10 ~ 30 VDC
General
- Watchdog timer: System (1.6 seconds) & communication (programmable)
- Operating temperature: -40 to 70 ° C (-40 to 158 ° F)
- Humidity: 20 ~ 95% RH
- Storage temperature: -40 to 85 ° C (-40 to 185 ° F)
- Interface: 10 / 100Base-T (X)
- Peer-To-Peer: Yes
- GCL: Yes
- Isolation protection: 2000 VDC
- Communication protocol: Modbus / TCP, TCP / IP, UDP, HTTP, DHCP, SNMP, MQTT
- Communication speed: Ethernet: 10/100 Mbit/s
- Comm. Distance: Ethernet: 100 m
- Connectors: 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power supply)
Analogue input
- Channel independent configuration: Yes
- Sampling rates: 10 or 100 samples / second
- Resolution: 16-bit
- Channels: 8
- Voltage range: ± 150 mV ± 500 mV ± 1 V ± 5 V ± 10 V, 0 ~ 150 mV, 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 5 V, 0 ~ 10 V.
- Current input: 0 ~ 20 mA, 4 ~ 20 mA, ± 20 mA
- Input impedance: voltage: > 10 MOhm, current: 120 Ohm
- Span drift: ± 25 ppm / ° C
- Zero drift: ± 6 µV / ° C
Digital output
- Channels: 2, open collector on 30V, 100 mA max. load
- Power dissipation: 300 mW for each module
