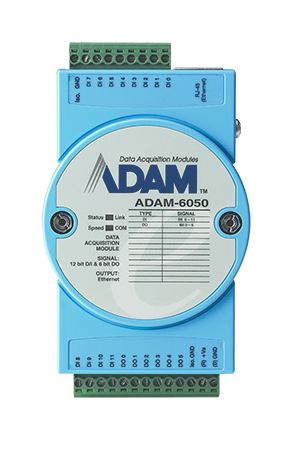

Advantech - ADAM-6050-D
18-Channel Isolated Digital I/O Modbus TCP Module
Listprice:
£153.99*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
ADAM-6050-D
Our article number:
260020
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - ADAM-6050-D"
ADAM-6000 enables easy integration of automation and enterprise systems via internet technology, allowing users to avoid changing the entire control system architecture and even monitor equipment status remotely with greater flexibility. ADAM-6000 modules are supported by peer-to-peer (P2P) and Graphic Condition Logic (GCL) and can be used as stand-alone products for measurement, control and automation. Instead of additional controls or programming, system configuration can be done in system configurations in extremely short time with the easy-to-use and intuitive graphical utility.
Scope of delivery: Advantech ADAM-6050-D
Scope of delivery: Advantech ADAM-6050-D
| I/O Interfaces: | Digital Input, Digital Output, I/O Sink |
|---|---|
| Interface: | Ethernet |
| Protocol: | ModBus, TCP, UDP |
| Temperature Range: | Standard Temperature Range |
Features
- I/O: 12ch digital input (counter)/6ch digital output (pulse output)
- Protocols: MQTT(TLS), SNMP, Modbus TCP, RESTful, ASCII
- GCL to execute basic logical control rules
- Peer-to-peer function to map I/O status
- Cloud access: data update on Azure
- Built-in web server
- Watchdog timer for system recovery
Technical details
Display
Power supply
Digital I/O
General
Digital input
Digital output
Display
- LED indicators: Status, Comm, Link, Speed
Power supply
- Power requirement: 10~30 VDC
Digital I/O
- Frequency input: DI counter (32-bit + 1-bit overflow, 3kHz max.)
General
- Real-time clock: Yes
- Watchdog timer: System (1.6 seconds) & communication (programmable)
- Operating temperature: -40 ~ 70°C (-40 ~ 158°F)
- Humidity: 20~95 %RH
- Storage temperature: -40 ~ 80°C (-40 ~ 176°F)
- Interface: 10/100Base-T(X)
- Peer-to-peer: Yes
- GCL: Yes
- Isolation protection: 2000 VDC
- Communication protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT
- Communication speed: Ethernet: 10/100Mbps
- Comm. Distance: Ethernet: 100 m
- Connection: 1 x RJ-45 (LAN) & 2 x plug-in terminal strip (I/O and power)
Digital input
- Input voltage: dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC
- Channels: 12
Digital output
- Channels: 6 (sink type) Open collector up to 30 V, 100 mA max. load Supports 5 kHz pulse output
