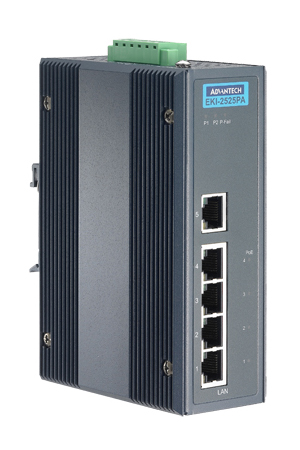

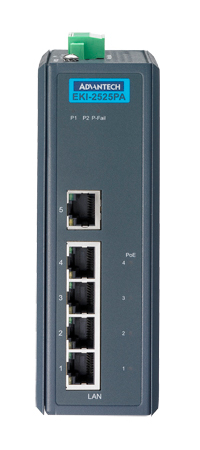

Advantech - EKI-2525PA-AE
5-Port Industrial PoE Switch with 24/48 VDC Power Input
Listprice:
£200.97*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
EKI-2525PA-AE
Our article number:
260674
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - EKI-2525PA-AE"
The EKI-2525PA and EKI-2528PAI are 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that support 4 PoE ports classified as Power Source Equipment (PSE). These PoE devices enable centralised power supply and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE 802.3af compliant power devices (PD) via the Ethernet cable, eliminating the need for additional power cabling. Advantech EKI PoE devices are equipped with all the standard features of the EKI family. In addition, they offer a redundant 24/48 VDC power input and are protected with a dual protection mechanism: power polarity reverse protect and a resettable overload protection. Advantech EKI PoE units feature a compact metal enclosure with an IP30 rating to protect them from dusty industrial environments.
Scope of delivery: Advantech EKI-2525PA-AE
Scope of delivery: Advantech EKI-2525PA-AE
| Connection: | 10 /100 |
|---|---|
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 5 Ports |
| Power Supply: | 24V DC, 48V DC, PoE |
| Temperature Range: | -10°C to 60°C |
| Management: | Layer 2 unmanaged |
Features
- Provides 5 Fast Ethernet ports with 4 PoE ports with injector function
- Supports 10/100 Mbps auto-negotiation
- Supports Ethernet ESD protection
- Provides Powerline EFT protection
- Offers slim size, DIN rail/wall mounting with IP30 metal mechanism
- Supports redundant 24/48 VDC power input and P-fail relay
- Supports operating temperatures from -10 to 60°C
Technical details
General
Certification
Environment
Ethernet
Mechanism
Power
General
- Number of ports: 5
- Power: 15.4 W at 48 V
- Power consumption: 62.5 W (full load PoE)
Certification
- EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
- EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
- Safety: UL 508
Environment
- Operating temperature: -10 to 60 ° C (14 to 140 ° F)
- Storage temperature: -40 to 85 ° C (-40 to 185 ° F)
Ethernet
- Ethernet port number: 5
- RJ45 port connector type: PoE (10/100 Mbit/s) x 4 + 10/100 Ethernet x 1
- RJ45 transmission distance: 100m
- RJ45 transmission speed: 10/100 Mbps
Mechanism
- Mounting: DIN rail, wall
- Dimensions (W x H x D): 48.6 x 140 x 95 mm (1.91" x 5.51" x 3.74")
- Housing: metal
- IP rating: IP30
Power
- Power consumption (DC): 24 VDC, redundant dual inputs
