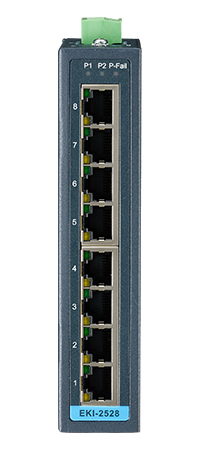

Advantech - EKI-2528-BE
8-Port Industrial Ethernet Switch (Unmanaged)
Listprice:
£87.00*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
EKI-2528-BE
Our article number:
262804
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - EKI-2528-BE"
The EKI-2525/2528 supports a Fast Ethernet solution. The power supply is redundant at 12 ~ 48 VDC and is protected by a dual protection mechanism: Power Polarity Reverse Protect and a resettable overload current fuse. The former tolerates reverse power wiring, while the latter protects the system from overload currents. When the power supply returns to normal, EKI-2525/2528 automatically resumes operation. Each port of the EKI-2525/2528 has 2 LEDs to indicate connection status, transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED activates the alarm to notify administrators. Technicians can easily verify the hardware status by checking the LED and have easy and quick troubleshooting. EKI-2525/2528 has a compact metal housing with IP30 rating to be protected from dusty industrial environments.
Scope of delivery: Advantech EKI-2528-BE
Scope of delivery: Advantech EKI-2528-BE
| Connection: | 10 /100 |
|---|---|
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 8 Ports |
| Power Supply: | 12V DC, 24V DC, 48V DC |
| Temperature Range: | -10°C to 70°C |
| Management: | Layer 2 unmanaged |
Features
- Provides 8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps auto-negotiation
- Compact size with DIN rail/wall mounting and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
Technical details
General
Port configuration
Certification
Environment
Ethernet
Mechanism
Power
General
- Number of Ethernet ports: 8
- Power: 12-48VDC
- Technology: Ethernet
- Unmanaged: Yes
Port configuration
- Description: 8 x 10 / 100Base-T (X)
- Total port number: 8
Certification
- EMI: CE, FCC Class A.
- EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
- Safety: UL 60950
Environment
- Operating temperature: -10 to 60 ° C (14 to 140 ° F)
- Storage temperature: -40 to 85 ° C (-40 to 185 ° F)
Ethernet
- Ethernet port number: 8
- RJ45 port connector type: RJ45
- RJ45 transmission distance: 100m
- RJ45 transmission speed: 10/100 Mbps
Mechanism
- Mounting: DIN rail, wall
- Dimensions (W x H x D): 30 x 140 x 95 mm (1,18 '' x 5,51 '' x 3,74)
- Housing: metal
- IP rating: IP30
Power
- Power connection: 6-pin detachable screw terminal
- Power consumption: 4.71 W
- Power consumption (DC): 12 ~ 48 VDC
- Redundant dual inputs: Yes
