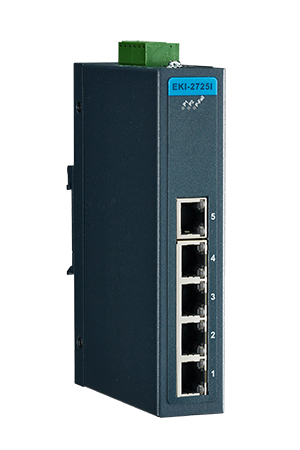

Advantech - EKI-2725-CE
5-Port Gigabit Industrial Ethernet Switch (Unmanaged)
Listprice:
£132.24*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
EKI-2725-CE
Our article number:
260239
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - EKI-2725-CE"
The EKI-2725/2728 supports Gigabit Ethernet. The power supply is redundant at 12 ~ 48 VDC and is protected by a dual protection mechanism: Power Polarity Reverse Protect and a resettable overload current protection. The former tolerates reverse power wiring, while the latter protects the system from overload currents. Once the power supply returns to normal, the EKI-2725/2728 automatically returns to normal operating status. Each port of the EKI-2725/2728 has 2 LEDs to indicate connection status, transmission speed and collision status. It also has a relay output for an event alarm. In the event of a power failure, the built-in LED activates the alarm to notify administrators. Technicians can easily verify the hardware status by checking the LED and have easy and quick troubleshooting. The EKI-2725/2728 has a compact metal housing with an IP30 rating that protects it from dusty industrial environments.
Scope of delivery: Advantech EKI-2725-CE
Scope of delivery: Advantech EKI-2725-CE
| Connection: | 10 / 100 / 1000 |
|---|---|
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 5 Ports |
| Power Supply: | 12 - 48V DC, 24V DC, 48V DC |
| Temperature Range: | -10°C to 60°C |
| Management: | Layer 2 unmanaged |
Features
- Provides 5 Gigabit Ethernet ports with Auto MDI/MDI-X
- Supports 10/100/1000Mbps Auto Negotiation
- Supports Jumbo Frame transmission up to 9kbytes
- Offers slim size, DIN rail with IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-fail relay
Technical details
Port configuration
Certification
Environment
Ethernet
Mechanism
Power
Port configuration
- Description: 5 x 10 / 100Base-TX
- Total port number: 5
Certification
- EMI: CE, FCC Class A.
- EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- Safety: UL 60950-1
Environment
- Operating temperature: -10 to 60 ° C (14 to 140 ° F)
- Storage temperature: -40 to 85 ° C (-40 to 185 ° F)
Ethernet
- Ethernet port number: 5
- RJ45 port connector type: RJ45
- RJ45 transmission distance: 100m
- RJ45 transmission speed: 10/100/1000 Mbps
Mechanism
- Mounting: DIN rail, wall
- Dimensions (W x H x D): 30 x 140 x 95 mm (1.18 "x 5.51" x 3.74 ")
- Housing: metal
- IP rating: IP30
Power
- Power connection: 6-pole detachable screw terminal
- Power consumption: Max. 2.5W
- Power consumption (DC): 12 ~ 48 VDC
- Redundant dual inputs: Yes
