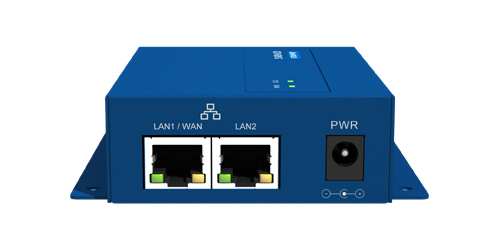

Advantech - ICR-1601G
Industrial Entry-Level Router with GPS, EMEA Cat.4, 2× ETH, no ACC
Listprice:
£152.25*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
ICR-1601G
Our article number:
263465
Questions? We will be happy to advise you! → Contact form
Product information "Advantech - ICR-1601G"
ICR-1600, EMEA/LATAM/APAC, 2x Ethernet, GPS, Metal, Without Accessories
Scope of delivery: Advantech - ICR-1601G
Scope of delivery: Advantech - ICR-1601G
Features
- LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM
- LTE B1, B3, B7, B8, B20
- DIN and Wall mount options
- 2x ETH
- GNSS receiver
- Operating temp. –30 °C to +70 °C, Power input : 5-18VDC (DC Jack), accessory with EU type power adapter
- Certifications: CE
- Diagnostics, VPN support, Firewall, WAN failover
Technical details
Region
EMEA: Yes
Interface
ETH Port(s): 2
Wi-Fi / GPS / PoE
GNSS receiver: Yes
Antenna Connectors
Cellular Antennas: 2 x SMA
GPS Antennas: 1 x SMA
Power
Power Input (DC): 10 ~ 60 VDC
Sleep Mode: Yes
Environment
Temperature (Operating Range): -30 ~ 70°C
Humidity (Operating Range): 0~95%
Mechanism
Dimensions (W x H x D): 90 x 27 x 93 mm
Enclosure (Metal): Metal
Mounting (DIN-rail): Yes
Mounting (Wall): Yes
Software
Advances Software Tool: WA/DMP, WA/VPN
