Icron USB 1.1 Rover 1850 - 00-00301
1 port, extends USB 1.1 connections via Cat5e up to 85 metres
Listprice:
£68.73*
Dealer price - Login
48 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
00-00301
Our article number:
760024
Questions? We will be happy to advise you! → Contact form
Product information "Icron USB 1.1 Rover 1850 - 00-00301"
USB Rover products operate over standard Cat 5e/6/7 cabling. The USB Rover 1850 uses technology that is ideal for extending USB peripherals and requires no additional software for the computer or target devices.

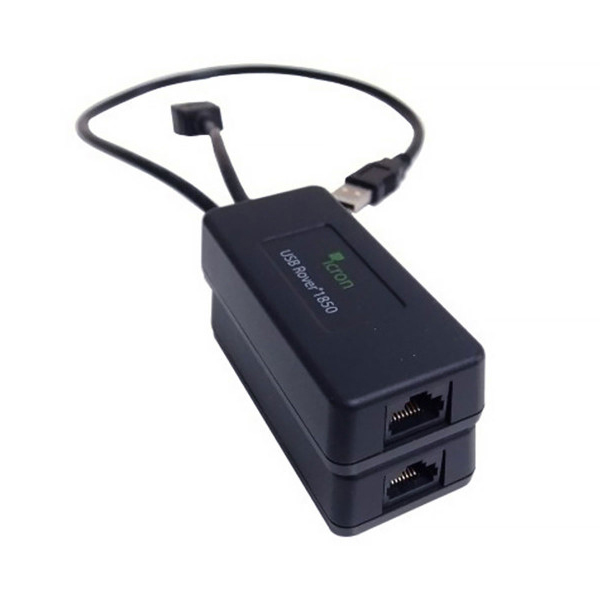

The USB Rover 1850 consists of two separate units: the Local Extender (LEX) and the Remote Extender (REX). The LEX unit connects to the host computer and the remote USB device connects to the REX unit via conventional USB cables. Cat 5e/6/7 cabling is used to connect the LEX and REX units over a distance of up to 85m.
Icron's USB Rover 1850 extension system is ideal for use with USB peripherals such as keyboards, mice, interactive whiteboards (including SMART Boards and Promethean ActivBoards) and game controllers.
Scope of delivery: Local Extender (LEX) module, Remote Extender (REX) module, Quick Start Guide.
The USB Rover 1850 consists of two separate units: the Local Extender (LEX) and the Remote Extender (REX). The LEX unit connects to the host computer and the remote USB device connects to the REX unit via conventional USB cables. Cat 5e/6/7 cabling is used to connect the LEX and REX units over a distance of up to 85m.
Icron's USB Rover 1850 extension system is ideal for use with USB peripherals such as keyboards, mice, interactive whiteboards (including SMART Boards and Promethean ActivBoards) and game controllers.
Scope of delivery: Local Extender (LEX) module, Remote Extender (REX) module, Quick Start Guide.
| Port Number: | 1 Port |
|---|
Features
- Reliable operation with other USB devices, including USB 1.1 webcams and USB hubs
- Works with all SMART Boards and Promethean ActivBoards
- Remote extender delivers up to 400mA to USB devices
- Supports any USB device at full speed (12 Mbps) or low speed (1.5 Mbps)
- Robust ESD and EFT immunity for industrial environments
- Designed and FCC/CE certified in North America
- 3-year warranty
- ExtremeUSB feature set:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux
Technical details
Range
LEX (Local extender)
REX (Remote extender)
Environmental conditions
Certifications
Support
Range
- Up to 85 m (279 feet)
LEX (Local extender)
- LEX unit - USB connection: 1 x USB plug type A
- LEX Unit - Pig Tail Length: 18" (45.7cm)
- LEX unit link connector: 1 x RJ45
- Dimensions: 3.34" x 1.57" x 0.98" (85mm x 40mm x 25mm)
REX (Remote extender)
- REX unit - USB connection: 1 x USB socket type A
- REX Unit - Pig Tail Length: 6" (15.2cm)
- REX unit link connection: 1 x RJ45
- Maximum current available at the REX: 400mA when the LEX is powered with 700mA
- Dimensions: 3.34" x 1.57" x 0.98" (85mm x 40mm x 25mm)
Environmental conditions
- Operating temperature: 0°C to 50°C (32°F to 122°F)
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental compatibility: RoHS2 (CE)
- Interference immunity: CE criteria A
- Safety: CPSIA, flammability V-1
Support
- Warranty: 3 years
