Icron USB 2.0 Ranger 2301 - 00-00392
1 port, extends USB 2.0 via CAT 5e/6/7 up to 100 metres
Listprice:
£304.50*
Dealer price - Login
30 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
00-00392
Our article number:
760054
Questions? We will be happy to advise you! → Contact form
Product information "Icron USB 2.0 Ranger 2301 - 00-00392"

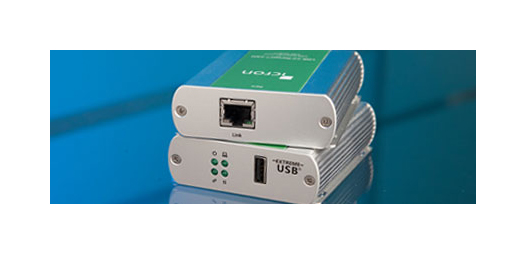

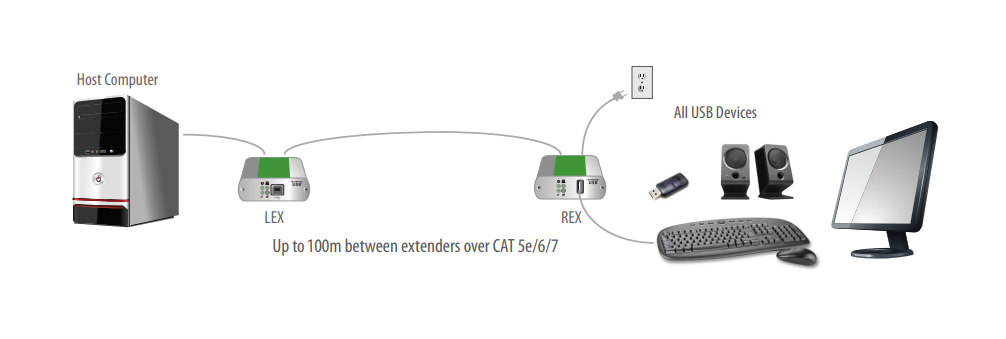

The USB 2.0 Ranger 2301 allows users to extend USB 2.0/1.1 connections up to 100m using a single CAT 5e/6/7 cable.
This 1-port USB 2.0 extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based 1-port USB 2.0 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), 2 metre USB cable, quick start guide, power adapter with cable.
This 1-port USB 2.0 extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based 1-port USB 2.0 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), 2 metre USB cable, quick start guide, power adapter with cable.
Port Number: | 1 Port |
---|
Features
- 1-port USB 2.0 extender that supports all USB 2.0/1.1 devices at up to 480 Mbps
- Delivers up to 1 amp to the USB port
- Mass storage acceleration for bulk transfers from USB 2.0 devices
- Metal enclosure with FCC/CE Class B certification
- Two-year warranty
- Extreme USB suite features:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, and Linux
Technical details
Range
Speed
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Direct connection up to 100m via CAT 5e/6/7
Speed
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
LEX (Local Extender)
- USB connection: 1 x USB socket type B
- Link connection: 1 x RJ45
- Dimensions: 86.0mm x 75.0mm x 26.0mm (3,4" x 3,0" x 1,0")
- Mounting: Slots for cable ties
- Housing material: Silver anodised aluminium
REX (Remote Extender)
- USB connection: 1 x USB socket type A
- Link connection: 1 x RJ45
- Available current: up to 1A to USB port
- Power supply: 100-240V AC input, 5V 3A DC output
- Dimensions: 86.0mm x 75.0mm x 26.0mm (3,4" x 3,0" x 1,0")
- Mounting: slots for cable ties
- Housing material: Silver anodised aluminium
Environmental conditions
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10 % to 90 % relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental compatibility: RoHS2, REACH, conflict minerals
Support
- Warranty: 2 years
