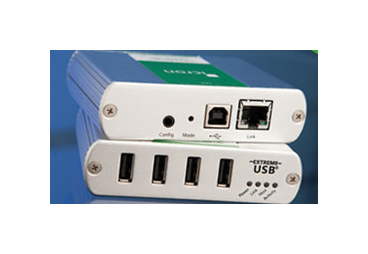

Icron USB 2.0 Ranger 2304GE-LAN - 00-00377
4 ports, extends USB 2.0 connections via LAN or CAT 5e/6/7 up to 100 metres
Listprice:
£365.40*
Dealer price - Login
1 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
00-00377
Our article number:
760043
Questions? We will be happy to advise you! → Contact form
Product information "Icron USB 2.0 Ranger 2304GE-LAN - 00-00377"
The USB 2.0 Ranger 2304GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or a single CAT 5e/6/7 cable up to 100 m in a point-to-point fashion. Extending via a LAN saves installation time and provides IT transparency.
This 4-port USB 2.0 LAN extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOSTM, and Linux.
In addition, this Extreme USB-based 4-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), AC power adapter, 2 metre USB cable, quick start guide, power adapter with cable.
This 4-port USB 2.0 LAN extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOSTM, and Linux.
In addition, this Extreme USB-based 4-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), AC power adapter, 2 metre USB cable, quick start guide, power adapter with cable.
| Port Number: | 4 Ports |
|---|
Features
- Extends USB as a direct connection or via 100Mbps or 1000Mbps LANs.
- Extends USB 2.0 and 1.1 devices (both low-speed and full-speed devices)
- Works with USB 3.0, 2.0 and 1.1 hosts
- Supports all USB-compatible peripherals (including isochronous devices such as webcams or audio devices) at up to 480 Mbps
- Uses a standard Solid Core CAT 5e cable for easy installation or existing LAN infrastructure
- Pre-configured network configuration for easy installation
- Number of devices can be increased by adding USB hubs
- FCC Class B
- Robust metal housing
- ExtremeUSB suite features:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, OS X and Linux
Technical details
- Direct connection range: Up to 100 m (330 ft) over CAT 5e/6/7 or better.
- Network connection range: Up to 100 m between switches via CAT 5e/6/7
- USB device support:
- Traffic types: All USB 2.0 and 1.1
- Device types: All USB 2.0 and 1.1 devices
- LEX unit USB connection: 1 x USB socket type B
- LEX unit link connection: 1 x RJ45
- REX unit link connection: 1 x RJ45
- REX unit USB connection: 4 x USB type A sockets
- Maximum supported USB devices: 30 USB devices or hubs
- Power supply: 100-240V AC input, 24V DC output
- Available current: Up to 600mA on each USB port simultaneously
- Dimensions of LEX and REX devices: 100mm x 76mm x 26mm (3.9" x 3.0" x 1.0")
- Operating temperature range: 0°C to 50°C ( 32°F to 122°F)
- Total system weight: 870 grams (1.9 lbs.)
- Regulatory tests: FCC (Class B), CE (Class B), RoHS2 (CE).
- Warranty: 2 years
