Icron USB 2.0 Ranger 2312 - 00-00407
2 ports, extends USB 2.0 connections via CAT 5e/6/7 up to 100 metres with flexible power supply (local or remote)
Listprice:
£343.65*
Dealer price - Login
53 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
00-00407
Our article number:
760053
Questions? We will be happy to advise you! → Contact form
Product information "Icron USB 2.0 Ranger 2312 - 00-00407"

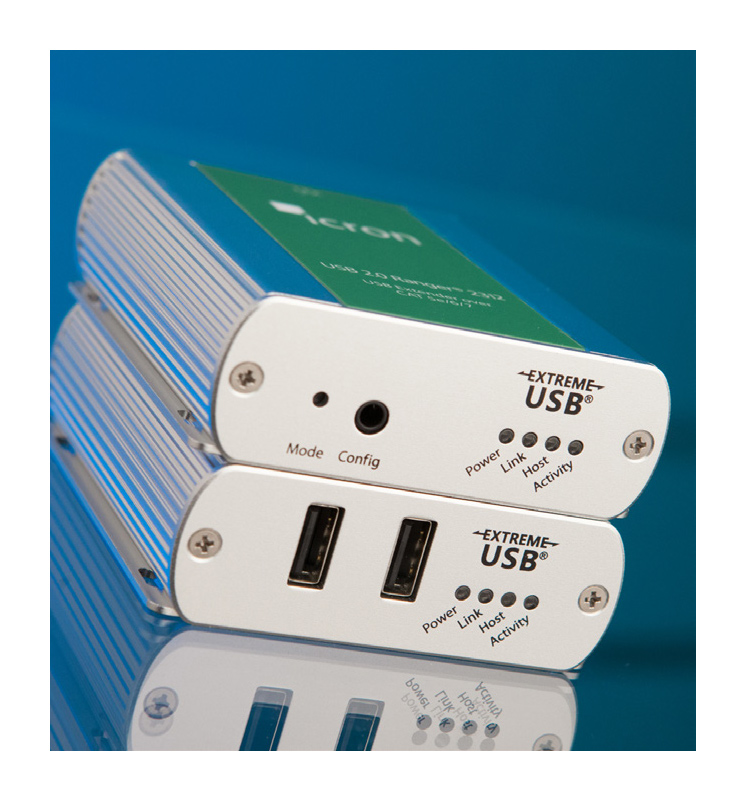

The USB 2.0 Ranger 2312 allows users to extend USB 2.0/1.1 connections up to 100m over a single CAT 5e/6/7 cable.

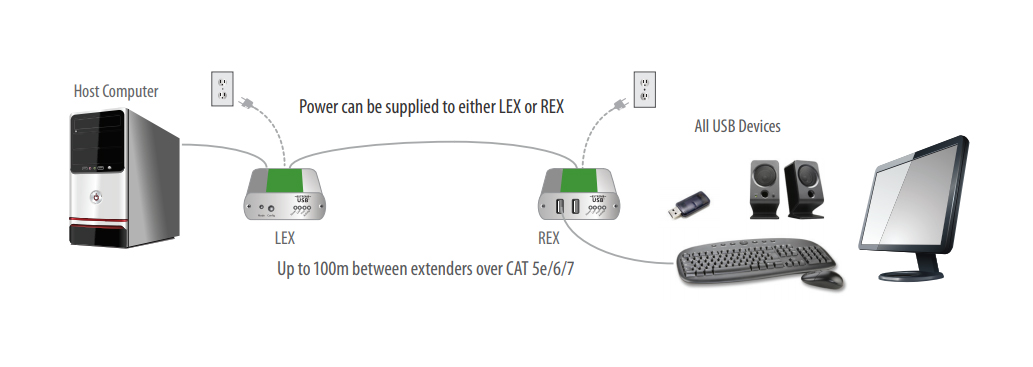

This dual-port USB 2.0 extender with flexible power supply offers installers the option of connecting the power supply to either the LEX or the REX, wherever is most convenient. The Ranger 2312 is plug-and-play - no software drivers are required - and works with all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based expansion system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), 2 metre USB cable, quick start guide, power adapter with cable.
This dual-port USB 2.0 extender with flexible power supply offers installers the option of connecting the power supply to either the LEX or the REX, wherever is most convenient. The Ranger 2312 is plug-and-play - no software drivers are required - and works with all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based expansion system is FCC/CE Class B certified and ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), 2 metre USB cable, quick start guide, power adapter with cable.
| Port Number: | 2 Ports |
|---|
Features
- USB 2.0 extender with flexible power supply - connect the power supply to either the LEX or the REX
- Delivers up to 1.5 A in total when using both USB ports
- Mass storage acceleration for bulk transfers from USB 2.0 devices
- Supports all USB 2.0/1.1 devices at up to 480 Mbps
- Metal enclosure with FCC/CE Class B certification
- Two-year warranty
- ExtremeUSB suite features:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, and Linux
Technical details
Range
Speed
Power supply
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Direct connection up to 100m via CAT 5e/6/7
Speed
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
Power supply
- Power supply: 100-240V AC input, 24V 1A DC output. To be connected to either LEX or REX
LEX (Local Extender)
- USB connection: 1 x USB socket type B
- Link connection: 1 x RJ45
- Dimensions: 87.0mm x 75.0mm x 26.0mm (3,4" x 3,0" x 1,0")
- Mounting: Slots for cable ties
- Housing material: Silver anodised aluminium
REX (Remote Extender)
- USB connection: 2 x USB socket type A
- Link connection: 1 x RJ45
- Available current: up to 1A to USB port
- Dimensions: 87.0mm x 75.0mm x 26.0mm (3,4" x 3,0" x 1,0")
- Mounting: slots for cable ties
- Housing material: Silver anodised aluminium
Environmental conditions
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10 % to 90 % relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental compatibility: RoHS2, REACH, conflict minerals
Support
- Warranty: 2 years
