Icron USB 2.0 Ranger 2344 - 00-00417
4 ports, extends USB 2.0 connections via fibre optics (single mode) up to 10km
Listprice:
£870.00*
Dealer price - Login
12 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
00-00417
Our article number:
760062
Questions? We will be happy to advise you! → Contact form

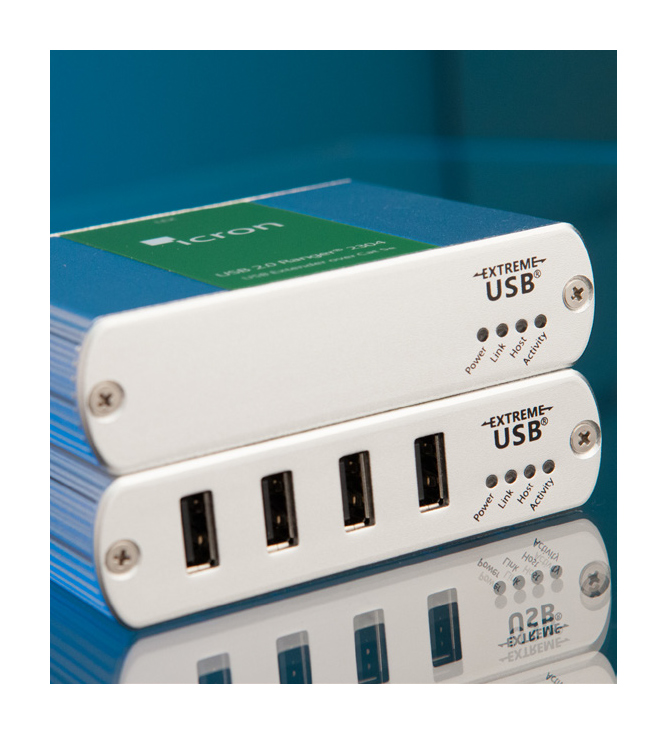

Product information "Icron USB 2.0 Ranger 2344 - 00-00417"

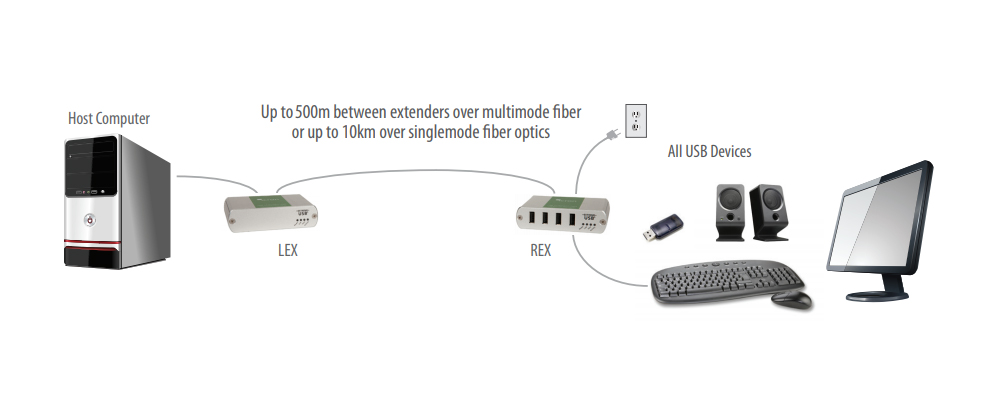

With the USB 2.0 Ranger 2344, users can extend USB 2.0/1.1 connections over single-mode fibre optic cables up to 10 km.
This 4-port USB 2.0 single-mode fibre optic extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS and Linux.
In addition, this Extreme USB-based USB 2.0 single-mode fibre optic extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams and any other USB 2.0 or 1.1 device.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), SFP single mode transceiver modules, 2 metre USB cable, quick start guide, power adapter with cable.
This 4-port USB 2.0 single-mode fibre optic extender supports data rates of up to 480 Mbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS and Linux.
In addition, this Extreme USB-based USB 2.0 single-mode fibre optic extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams and any other USB 2.0 or 1.1 device.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), SFP single mode transceiver modules, 2 metre USB cable, quick start guide, power adapter with cable.
| Port Number: | 4 Ports |
|---|
Features
- 4-port USB 2.0 extender that supports all USB 2.0/1.1 devices at up to 480 Mbps
- Up to 10 km with single-mode fibre optics
- Built-in hub delivers up to 1 amp to each USB port; 2.5 amps in total together
- Electrical isolation
- Mass storage acceleration for bulk transfers of USB 2.0 devices
- Metal enclosure with FCC/CE Class B certification
- Two-year warranty
- ExtremeUSB suite features:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, and Linux
Technical details
Range
Speed
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Direct connection up to 10 km via single-mode fibre optics
Speed
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
LEX (Local Extender)
- USB connection: 1 x USB socket type B
- Link connection: 1 x SFP Duplex LC
- Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9" x 3.0" x 1.0")
- Mounting: 4 holes for surface mounting or optional mounting kit available
- Enclosure material: silver anodised aluminium
REX (Remote Extender)
- USB connection: 4 x USB type A sockets
- Link port: 1 x SFP Duplex LC
- Available current: up to 1 amp on each USB port; 2.5 amps total shared
- Power supply: 100-240V AC input, 24V 1A DC output
- Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9" x 3.0" x 1.0")
- Mounting: 4 holes for surface mounting or optional mounting kit available
- Housing material: silver anodised aluminium
Environmental conditions
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10% to 90% relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2, REACH, conflict minerals
Support
- Warranty: 2 years
