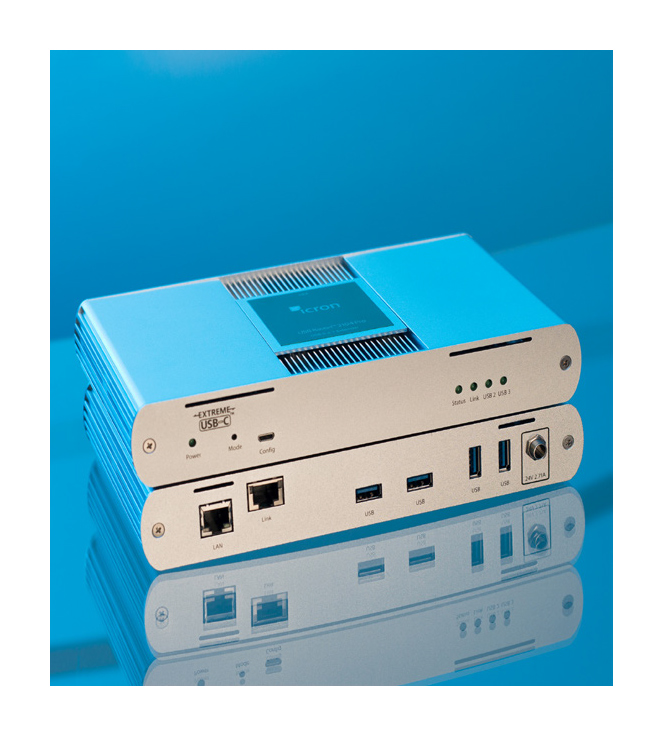

Icron USB 3-2-1 Raven 3104 Pro
4 ports, extends USB 3-2-1 simultaneously over CAT 6a/7, with extended support for cameras and video recording devices, up to 100 metres
Listprice:
£1,552.08*
Dealer price - Login
41 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
00-00452
Our article number:
760072
Questions? We will be happy to advise you! → Contact form
Product information "Icron USB 3-2-1 Raven 3104 Pro"
The Icron USB 3-2-1 Raven™ 3104 Pro is Icron's latest innovation in ExtremeUSB-C technology. The Raven 3104 Pro enables simultaneous expansion of USB 3.2 Gen 1, 2.0 and 1.1 protocols over a single connection with auto-negotiated communication between hosts and devices for maximum interoperability and ease of use. Designed specifically for better performance with USB 3 cameras and video capture devices, the Raven 3104 Pro is enhanced and offers support for higher frame rates and resolutions than standard Raven products. The Raven 3104 Pro is easy to install; just plug and go (no software drivers required) and it works with all major operating systems: Windows, macOS, Linux and Chrome OS.
In addition, this Extreme USB-C based USB 3.2 extender system is FCC/CE Class B certified and backward compatible for use with all USB 3, 2 and 1 devices such as conference cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters and audio devices.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB 3.1 Gen 1 Cable, LEX 24V DC 1A International Power Adapter, REX 24V DC 2.71A International Power Adapter, 2 x Power Cords, Quick Start Guide.
In addition, this Extreme USB-C based USB 3.2 extender system is FCC/CE Class B certified and backward compatible for use with all USB 3, 2 and 1 devices such as conference cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters and audio devices.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB 3.1 Gen 1 Cable, LEX 24V DC 1A International Power Adapter, REX 24V DC 2.71A International Power Adapter, 2 x Power Cords, Quick Start Guide.
| Port Number: | 4 Ports |
|---|
Features
- USB 3.2 Gen 1 data rate up to 5Gbps
- Supports all USB 3.1, 2.0, 1.1 devices simultaneously with full bandwidth
- Four available 3.2 Gen 1 ports
- Up to 1.2A (6W) per USB port
- 100/1000 Ethernet channel; LAN pass-through
- One cable, CAT 6a/7 up to 100m
- Point-to-point connection
- Supports all USB transmission modes (control, interrupt, isochronous and bulk)
- Optimised for camera and video recording devices
- FCC and CE compliant (Class B)
- Two-year warranty
- ExtremeUSB-C suite features:
- Transparent USB expansion that supports USB 3, 2 and 1.
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Technical details
Range
Speed
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Direct connection up to 100 m via CAT 6a/7 cable
Speed
- USB 3.2: up to 5Gbps
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
LEX (Local Extender)
- 1x USB 3 type B socket
- 1x RJ45 Ethernet 100/1000 connector
- 1x RJ45 Ethernet link connector
- 24V 1A DC locking socket
- Housing material: silver anodised aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
- Weight: 920g (2.03 lbs.)
- Mounting: 4 holes for surface mounting or optional mounting kit available
REX (Remote Extender)
- 4x USB 3 type A sockets
- 1x RJ45 Ethernet 100/1000 connector
- 1x RJ45 Ethernet link connector
- 24V 2.71A DC locking socket
- Available current: up to 1.2A (6W) per USB port
- Housing material: silver anodised aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
- Weight: 990g (2.18 lbs.)
- Mounting: 4 holes for surface mounting or optional mounting kit available
Environmental conditions
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10% to 90% relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2/3, REACH, conflict minerals
Support
- Warranty: 2 years
