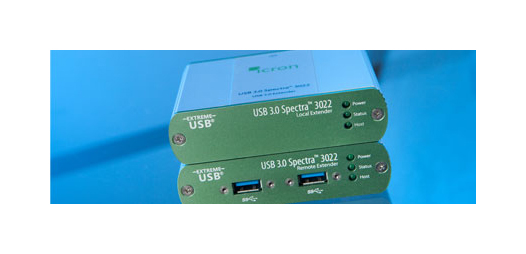

Icron USB 3.0 Spectra 3022 - 00-00328
2 ports, extends USB 3.0 connections via fibre optics (multimode) up to 100 metres
Listprice:
£700.35*
Dealer price - Login
1 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
00-00328
Our article number:
760013
Questions? We will be happy to advise you! → Contact form
Product information "Icron USB 3.0 Spectra 3022 - 00-00328"
The USB 3.0 range is specified at 3 metres. If longer distances are required, consider the USB 3.0 Spectra 3022, which supports USB 3.0 throughputs of 5 Gbps up to 100 metres over OM3 multimode fibre optic cable. A true plug-and-play solution, the Spectra 3022 is compatible with all leading operating systems and features two locking USB ports and a locking power connector. The Spectra 3022 is guaranteed for 2 years from the date of purchase and is AIA USB3 Vision compliant. Backwards compatibility to USB 2.0/1.1 is not supported by this model. For full backwards compatibility, select the latest generation Raven 3124 to easily extend USB 3, USB 2 and USB 1 peripherals up to 200m over multimode fibre.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), SFP Multimode Transceiver Modules, Lockable Power Adapter, 3.0 USB Cable, Power Cable, Quick Start Guide.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), SFP Multimode Transceiver Modules, Lockable Power Adapter, 3.0 USB Cable, Power Cable, Quick Start Guide.
| Port Number: | 2 Ports |
|---|
Features
- Up to 50 m extension for USB 3.0 storage devices and 100 m for USB 3.0 cameras
- Provides speed, isolation and security over multimode fibre (SFP transceiver included)
- USB 3.0 throughput of up to 5 Gbps
- Integrated 2-port hub suitable for industrial environments
- Robust lockable USB and power connectors
- Housing with convenient pre-drilled holes for optional bracket mounting
- Works with AIA USB3 Vision compliant devices
- ExtremeUSB feature set
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux
- 2 year warranty
Technical details
Range
Speed
LEX (Local extender)
REX (Remote extender)
Environmental conditions
Certifications
Support
Range
- OM2 multimode fibre: Up to 50m (165 ft)
- OM3 multimode fibre: Up to 100m (330 ft)
Speed
- USB 3.0: Up to 5 Gbit/s (not backwards compatible with USB 2.0/1.1)
LEX (Local extender)
- USB connection: 1 x USB 3.0 type B locking socket
- Link connector: 1 x duplex LC connector
- Dimensions: 100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")
- Housing material: Anodised aluminium
REX (Remote extender)
- USB ports: 2 x USB 3.0 type A locking sockets
- Link connector: 1 x duplex LC connector
- Dimensions: 100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")
- Housing material: Anodised aluminium
- Power connector: 24V DC, 1A, latching, 2.1mm, centre-positive
- Available current: 900mA for each USB port
- Power supply: 100-240V AC brick, latching
Environmental conditions
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20% to 80% relative humidity, non-condensing
- Storage humidity: 10% to 90% relative humidity, non-condensing
Certifications
- Emissions: FCC (Class B), CE (Class B)
- Environmental compliance: RoHS2 (CE)
- Machine vision: Works with AIA USB3 Vision compliant devices
Support
- Warranty: 2 years
