InHand Networks - IR302-FQ58 WiFi

Features

Multiple Choices for Network Access, Easy CDMA/GPRS Migration to LTE
Available with wired network access, high speed LTE CAT4, middle and lower speed CAT1 and CATM, NB-IoT and Wi-Fi connection, the IR301/302 offers multiple choices for Internet access, enables you to build your LTE network with minimum effort.

High Reliability and Stability
The IR301/302 provides reliable networking service for unattended IoT sites. With support for multiple means of access and backup mechanisms, the IR301/302 ensures uninterrupted network access, offering constant connection for various sites.

• Failover between wired, cellular LTE networks and Wi-Fi;
• Dual-SIM failover, automatically switches to the better carrier network;
• VRRP mechanism for backup;
• Multi-layer link detection mechanism, automatic redial and recovery.

Strong Security Protection
The IR301/302 offers multiple security mechanisms, ensures secure Internet connectivity throughout data transmission, network protection and management.

• Supports IPsec VPN, PPTP, OPEN VPN, etc., ensuring secure data transmission;
• Supports firewall functions including SPI detection, access control, DDoS defense, virtual IP mapping, IP-MAC binding, etc., protecting the network against external attacks;
• Supports user authorization management, ensuring the security of device management.

Industrial Design, Easy for Deployment
Compact size makes the IR301/302 easy for mass deployment. Featuring both panel and DIN-rail installation, the IR301/302 works for a variety of IoT scenarios.
Applying InHand’s constant principles for industrial design, the IR301/302 offers high quality networking solution for unattended sites, and works well even in harsh environments.

Efficient Device Management
With InHand Device Manager cloud platform, it is easy to remotely monitor and manage a large number of devices, enhancing efficiency for network deployment and maintenance.

Technical details

InRouter300 Hardware Specifications
Item: InRouter302

Hardware Platform
CPU Platform: 580MHz
RAM: 128MB DDR2
Flash: 32MB SPI

Interfaces
Ethernet Ports: 2*10/100Mbps fast Ethernet port, LAN/WAN port; 1.5KV network isolation transformer protection
Serial Port: No serial port
Power Supply: DC9-36V, over-current protection, anti-reverse connection, 2 PIN industrial terminal block
Reset Button: Pinhole reset button
SIM Card: Dual drawer-type SIM card slots. 2FF SIM
Wi-Fi (Optional): IEEE 802.11b/g/n, 150Mbps
Antenna Connector: 3G/4G: SMA x 1; Wi-Fi: RP-SMA x 1 (Note: North America models (FQ38, FQ33): 2 x SMA 4G antenna connectors.)
Ground Terminal: Supported

Mechanical
Dimensions: 90 x 90 x 25mm
Weight: 259g
Installation Method: Panel mounting, DIN-rail mounting
Protection Rating: IP30
Housing: Metal
Cooling: Fanless

Power Rate
Working Power: 100mA-120mA@12V
Standby Power: 80mA-90mA@12V
Peak Power: 190mA@12.0V

Wi-Fi Transmit Power
Transmit Power: 802.11b:16dBm +/-2dBm(11Mbps), 802.11g:16dBm +/-2dBm(54Mbps), 802.11n@2.4GHz:16dBm +/-2dBm(HT20 MCS7), 802.11n@2.4GHz:16dBm +/-2dBm(HT40 MCS7)

Ambient Environment
Storage Temperature: -40 ~ 85°C
Operating Temperature: -20 ~ 70°C
Humidity: 5 ~ 95% (non-condensing)

Indicator
LED: Power, Status, Cellular, Wi-Fi, cellular Signal

EMC
Static: EN61000-4-2, level 2
Radio Electric Field: EN61000-4-3, level 2
Pulsed Electric Field: EN61000-4-4, level 2
Surge: EN61000-4-5, level 2
Conducted Disturbance Immunity: EN61000-4-6, level 2
Shock Wave Resistance: EN61000-4-12, level 2
Power Frequency Magnetic Field Resistance: EN61000-4-8, horizontal/vertical 400A/m (>level 2)

Physical
Shockproof: IEC60068-2-27
Vibration Resistance: IEC60068-2-6
Free Fall: IEC60068-2-32

Certification
CE, FCC, PTCRB, IC, Verizon, AT&T, T-mobile (in progress)


InRouter300 Software Specifications
Item: InRouter302

Network Connection
Network Access: APN, VPDN, Private Network
Access Authentication: CHAP/PAP
LAN Protocol: ARP
WAN Protocol: PPP, PPPoE, DHCP

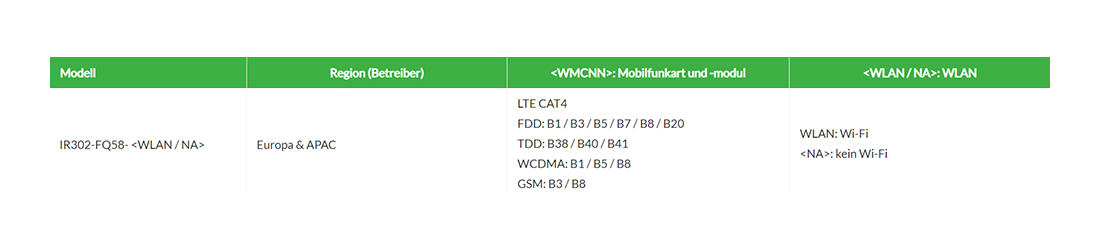

Network Type: GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/FDD LTE (Please refer to the Ordering Guide for frequencies.)

Network Protocol
IP Application: Ping, RouteTrace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing: Static routing
NAT: Supports network address translation

Security
Network Security: Stateful Packet Inspection (SPI), DoS attack defense; Multicast filter/Ping probe packet, Access Control List (ACL); Content URL filter, port mapping, virtual IP mapping, IP-MAC binding
Data Security: Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2), OPENVPN protocols; Supports CA digital certificate

Reliability
Hot Backup: VRRP hot backup
Link Detection: Sends heartbeat packets to detect, auto redials when disconnected
Dual SIM Failover: Supports dual SIM failover
Embedded Watchdog: Device runs self-detection, auto recovers from malfunctions

WLAN (Optional)
Protocol: IEEE 802.11b/g/n
Rate: Up to 150Mbps
Mode: AP, Client and WDS modes
Security: Open system, shared key, WPA/WPA2 certification; WEP/TKIP/AES encryption
Transmission Distance: 80 meters by line of sight (Actual transmission distance depends on environment of the site.)

Network Management
QoS Management: Bandwidth limit, IP speed limit
Configuration: Telnet, web, ssh and console
Upgrade: Web, Device Manager
Log: Local system log, remote log, and serial export of log. Power down saving of important logs.
SMS Functions: Status query, restart
Dial-on-demand: Dial-on-demand, data / SMS activation
Network Management: Supports InHand Device Manager, batch management. Add the user experience plan to access The InHand Networks cloud platform to enjoy efficient and convenient services.
SNMP: SNMP v1/v2c/v3，supports SNMP TRAP
Traffic Management: Supports data traffic threshold, traffic statistics and traffic alarm
Alarm: System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc.
Maintenance Tools: Ping, route tracking, network speed test
Status Query: System status, modem status, network connection status, and routing status
