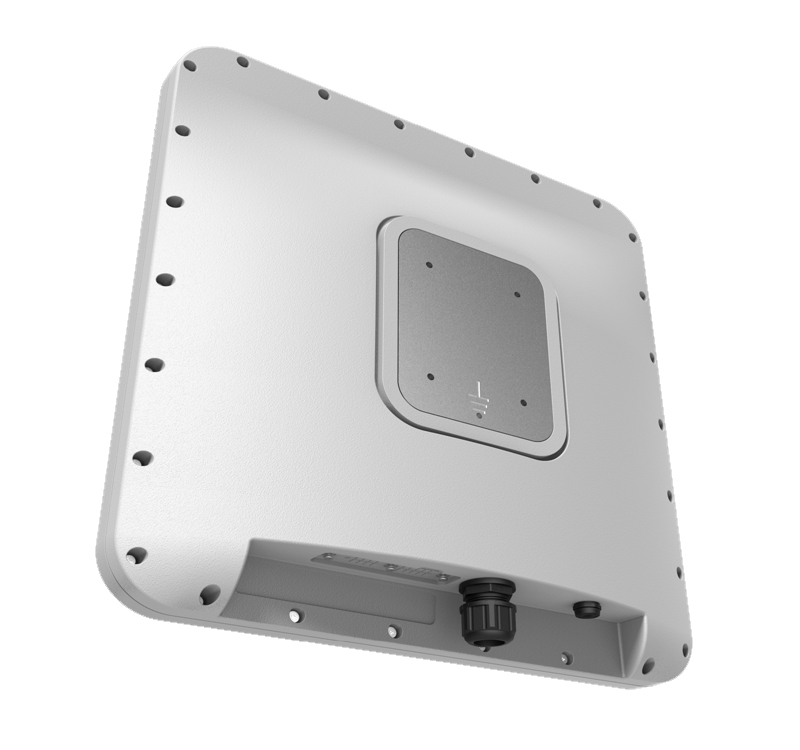

Inseego - Wavemaker PRO 5G CPE FW2000e
5G outdoor modem
Listprice:
£1,130.13*
Dealer price - Login
18 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
Wavemaker PRO 5G CPE FW2000e
Our article number:
570250
Questions? We will be happy to advise you! → Contact form
Product information "Inseego - Wavemaker PRO 5G CPE FW2000e"
Whether you’re offering high-speed internet connections to rural and suburban customers at the edge of your network or providing new 5G connectivity for private enterprise networks, the FW2000 series is designed to deliver best-in-class performance.
The FW2000 series outdoor Customer Premises Equipment (CPE) uses high-gain directional antennas to extend the reach of carrier networks, providing 5G fixed wireless access (along with 4G LTE fallback at LTE CAT 22 speeds*) to serve customers in more places.
The intuitive Inseego Mobile app makes it easy to find the strongest network signal and best mounting location for the FW2000 series outdoor CPEs. Once up and running the, IP67-rated FW2000 series is designed to stand up to harsh weather conditions and temperature extremes while protecting your network with enterprise-grade security.
Scope of delivery: Inseego - Wavemaker PRO 5G CPE FW2000e
The FW2000 series outdoor Customer Premises Equipment (CPE) uses high-gain directional antennas to extend the reach of carrier networks, providing 5G fixed wireless access (along with 4G LTE fallback at LTE CAT 22 speeds*) to serve customers in more places.
The intuitive Inseego Mobile app makes it easy to find the strongest network signal and best mounting location for the FW2000 series outdoor CPEs. Once up and running the, IP67-rated FW2000 series is designed to stand up to harsh weather conditions and temperature extremes while protecting your network with enterprise-grade security.
Scope of delivery: Inseego - Wavemaker PRO 5G CPE FW2000e
| Options: | 5G, LTE |
|---|
Features
- High gain directional antennas extend wireless operator coverage
- Enterprise device security, third-party penetration testing, content filtering and more
- User-friendly Inseego mobile app to optimise placement, simplify the installation process and manage device settings
- Inseego Connect remote device management and configuration
- Designed for extreme temperatures and equipped with IP67 rating for protection against water and dust
Technical details
Connectivity
5G Sub6
4G LTE CAT 22
4x4 MIMO Sub6
256 QAM Sub6
Bands Supported
5G NR: n1/n2/n3/n5/n7/n12/n20/n25/n28/n38/n40/n41/n46/n48/n66/n71/n77/n78
4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71
Band support varies by regional SKU
Chipset
Qualcomm® Snapdragon™ SDX55
Ports
(1) 5Gbps Ethernet LAN Port
LED Indicators
(1) Power and status LED
Power
Power over Ethernet (PoE) - 802.3bt Type 3
Hign Gain Antennas
14dBi: 3.3GHz - 4.2GHz
12dBi: 1.7GHz - 2.7GHz
5dBi: 1.5GHz
0-4dBi: 600MHz - 1.0GHz
Included Accessories
PoE injector
SIM tool
Dimensions & Weight
430mm x 400mm x 71.7mm (16.9” x 15.75” x 2.8” )
4.22 kg (9.3 lbs)
Operating Temperature
-30°C to 70°C (-22 to 158°F)
Environmental
IP67 rating for water and dust ingress protection
Internal heating element for startup and operation in cold environments
SIM
Dual SIM, (2) Nano 4FF SIM Slots
Multi-carrier support with auto-switching
Web UI Operating Systems Supported
Windows 10 and later
MacOS 10.14 and later
Linux® Ubuntu 18.04 LTS and later
Security
Inseego Secure™ compatible
3rd Party cybersecurity penetration testing verified
Security hardened web interface
Password hash
Anti-CSRF
Session timeout
Incorrect password lockout
MACsec encryption
IP Passthrough
Firewall with adjustable settings and rules
Port filtering, port forwarding, MAC filtering
Standards /Approvals /Certifications
FCC/GCF/PTCRB
CE/ISED/MIC/RCM-ACMA
RoHS/WEEE/REACH
Bluetooth SIG
5G Sub6
4G LTE CAT 22
4x4 MIMO Sub6
256 QAM Sub6
Bands Supported
5G NR: n1/n2/n3/n5/n7/n12/n20/n25/n28/n38/n40/n41/n46/n48/n66/n71/n77/n78
4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71
Band support varies by regional SKU
Chipset
Qualcomm® Snapdragon™ SDX55
Ports
(1) 5Gbps Ethernet LAN Port
LED Indicators
(1) Power and status LED
Power
Power over Ethernet (PoE) - 802.3bt Type 3
Hign Gain Antennas
14dBi: 3.3GHz - 4.2GHz
12dBi: 1.7GHz - 2.7GHz
5dBi: 1.5GHz
0-4dBi: 600MHz - 1.0GHz
Included Accessories
PoE injector
SIM tool
Dimensions & Weight
430mm x 400mm x 71.7mm (16.9” x 15.75” x 2.8” )
4.22 kg (9.3 lbs)
Operating Temperature
-30°C to 70°C (-22 to 158°F)
Environmental
IP67 rating for water and dust ingress protection
Internal heating element for startup and operation in cold environments
SIM
Dual SIM, (2) Nano 4FF SIM Slots
Multi-carrier support with auto-switching
Web UI Operating Systems Supported
Windows 10 and later
MacOS 10.14 and later
Linux® Ubuntu 18.04 LTS and later
Security
Inseego Secure™ compatible
3rd Party cybersecurity penetration testing verified
Security hardened web interface
Password hash
Anti-CSRF
Session timeout
Incorrect password lockout
MACsec encryption
IP Passthrough
Firewall with adjustable settings and rules
Port filtering, port forwarding, MAC filtering
Standards /Approvals /Certifications
FCC/GCF/PTCRB
CE/ISED/MIC/RCM-ACMA
RoHS/WEEE/REACH
Bluetooth SIG
