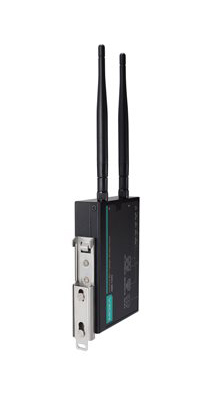

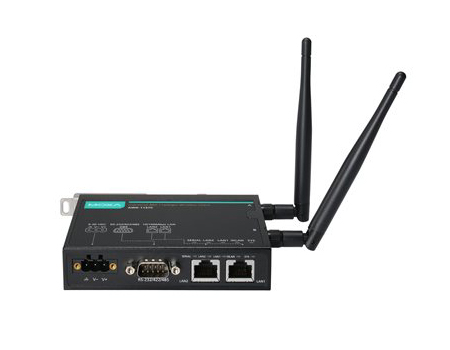

MOXA - AWK-1137C-EU
802.11a/b/g/n wireless client, EU band, 0 to 60°C operating temperature
Listprice:
£414.99*
Dealer price - Login
26 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
AWK-1137C-EU
Our article number:
13840
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - AWK-1137C-EU"
The AWK-1137C is an ideal client solution for industrial wireless mobile applications. It enables WLAN connections for both Ethernet and serial devices, and is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The AWK-1137C can operate on either the 2.4 or 5 GHz bands, and is backwards-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments. The Wireless add-on for the MXview network management utility visualizes the AWK's invisible wireless connections to ensure wall-to-wall Wi-Fi connectivity.
Scope of delivery: MOXA - AWK-1137C-EU
Scope of delivery: MOXA - AWK-1137C-EU
| Access Points: | Client |
|---|
Features
Industrial Ruggedness
Industrial Ruggedness
- Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference
- -40 to 75°C wide operating temperature models (-T) available for smooth wireless communication in harsh environments
- Client-based Turbo Roaming for < 150 ms roaming recovery time between APs
- MIMO technology to ensure transmitting and receiving capability while on the move
- Anti-vibration performance (with reference to IEC 60068-2-6)
- Semi-automatically configurable to reduce deployment cost
- AeroMag support for error-free setup of your industrial applications’ basic WLAN settings
- Various communication interfaces for connecting to different types of devices
- One-to-many NAT to simplify your machine setup
- Dynamic topology view shows the status of wireless links and connection changes at a glance
- Visual, interactive roaming playback function to review the roaming history of clients
- Detailed device information and performance indicator charts for individual AP and client devices
Technical details
WLAN Interface
WLAN Standards: 802.11a/b/g/n, 802.11i Wireless Security
Modulation Type: DSSS, OFDM, MIMO-OFDM
Frequency Band for EU (20 MHz operating channels): 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
Wireless Security: WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal
Transmission Rate: 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11a: 23±1.5 dBm @ 6 to 24 Mbps, 21±1.5 dBm @ 36 Mbps, 20±1.5 dBm @ 48 Mbps, 18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz): 23±1.5 dBm @ MCS0/8 20 MHz, 18±1.5 dBm @ MCS7/15 20 MHz, 23±1.5 dBm @ MCS0/8 40 MHz, 18±1.5 dBm @ MCS7/15 40 MHz
Transmitter Power for 802.11b: 26±1.5 dBm @ 1 Mbps, 26±1.5 dBm @ 2 Mbps, 26±1.5 dBm @ 5.5 Mbps, 25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g: 23±1.5 dBm @ 6 to 24 Mbps, 22±1.5 dBm @ 36 Mbps, 20±1.5 dBm @ 48 Mbps, 19±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz): 23±1.5 dBm @ MCS0/8 20 MHz, 17±1.5 dBm @ MCS7/15 20 MHz, 23±1.5 dBm @ MCS0/8 40 MHz, 17±1.5 dBm @ MCS7/15 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps, Typ. -88 @ 9 Mbps, Typ. -87 @ 12 Mbps, Typ. -85 @ 18 Mbps, Typ. -81 @ 24 Mbps, Typ. -78 @ 36 Mbps, Typ. -74 @ 48 Mbps, Typ. -73 @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -69 dBm @ MCS7 20 MHz, Typ. -70 dBm @ MCS15 20 MHz, Typ. -64 dBm @ MCS7 40 MHz, Typ. -66 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -89 dBm @ 1 Mbps, Typ. -89 dBm @ 2 Mbps, Typ. -89 dBm @ 5.5 Mbps, Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -88 dBm @ 6 Mbps, Typ. -88 dBm @ 9 Mbps, Typ. -88 dBm @ 12 Mbps, Typ. -87 dBm @ 18 Mbps, Typ. -84 dBm @ 24 Mbps, Typ. -81 dBm @ 36 Mbps, Typ. -77 dBm @ 48 Mbps, Typ. -75 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -70 dBm @ MCS7 20 MHz, Typ. -70 dBm @ MCS15 20 MHz, Typ. -64 dBm @ MCS7 40 MHz, Typ. -65 dBm @ MCS15 40 MHz
WLAN Operation Mode: Client, Client-Router, Slave, Sniffer
Antenna: External, 2/2 dBi, Omni-directional
Antenna Connectors: 2 RP-SMA female
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 2
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.1Q for VLAN Tagging
Ethernet Software Features
Management: DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
Routing: Port forwarding, Static Route, NAT
Security: HTTPS/SSL, RADIUS, SSH
Time Management: NTP Client, SNTP Client
Firewall
Filter: ICMP, MAC address, IP protocol, Port-based
Serial Interface
Connector: DB9 male
Serial Standards: RS-232, RS-422/485, RS-232/422/485
Operation Modes: Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Baudrate: 75 bps to 921.6 kbps
Serial Data Log: 256 KB
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
LED Interface
LED Indicators: SYS, LAN1, LAN2, WLAN, Serial
Input/Output Interface
Buttons: Reset button
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)
Weight: 470 g (1.03 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
Input Voltage: 9 to 30 VDC
Power Connector: 1 removable 3-contact terminal block(s)
Power Consumption: 11.7 W (max.)
Reverse Polarity Protection: Supported
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
