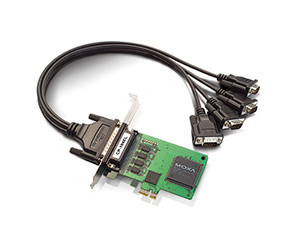

MOXA - CP-104EL-A-DB9M
4-port RS-232 low-profile PCI Express x1 serial board (includes DB9 male cable)
Listprice:
£178.35*
Dealer price - Login
Delivery time: Goods are ordered, available again shortly
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
CP-104EL-A-DB9M
Our article number:
11558
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - CP-104EL-A-DB9M"
The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s 4 RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.
Scope of delivery: MOXA - CP-104EL-A-DB9M
Scope of delivery: MOXA - CP-104EL-A-DB9M
| Isolation: | without isolation |
|---|---|
| Processor: | without processor |
| Protocol: | RS 232 |
| Serial Ports: | 4 Ports |
Features
Smaller Form Factor
The CP-104EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-104EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Smaller Form Factor
The CP-104EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-104EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Technical details
Serial Interface
Comm. Controller: 16C550C compatible
Bus: PCI Express 1.0
Connector: DB44 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 4
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
UNIX Drivers: QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Power Parameters
Input Current: 805 mA @ 3.3 VDC
Physical Characteristics
Dimensions: 67.21 x 103 mm (2.65 x 4.06 in)
LED Interface
LED Indicators: Built-in Tx, Rx LEDs for each port
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Serial Interface
Comm. Controller: 16C550C compatible
Bus: PCI Express 1.0
Connector: DB44 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 4
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
UNIX Drivers: QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Power Parameters
Input Current: 805 mA @ 3.3 VDC
Physical Characteristics
Dimensions: 67.21 x 103 mm (2.65 x 4.06 in)
LED Interface
LED Indicators: Built-in Tx, Rx LEDs for each port
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
