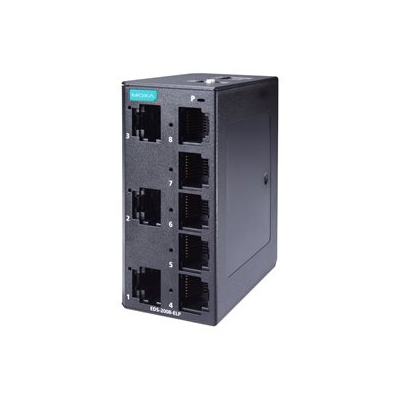

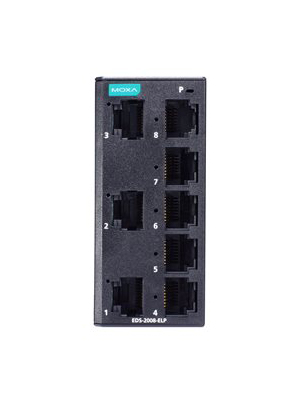

MOXA - EDS-2008-ELP
Unmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports, 12/24/48 power input, plastic housing, -10 to 60°C operating temperature
Listprice:
£102.66*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
EDS-2008-ELP
Our article number:
14333
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - EDS-2008-ELP"
The EDS-2008-ELP series of industrial Ethernet switches have eight 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.
The EDS-2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP Series has a standard operating temperature range of -10 to 60°C.
Scope of delivery: MOXA - EDS-2008-ELP
The EDS-2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP Series has a standard operating temperature range of -10 to 60°C.
Scope of delivery: MOXA - EDS-2008-ELP
| Connection: | 10 /100 |
|---|---|
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 8 Ports |
| Power Supply: | 12V DC, 24V DC, 48V DC |
| Temperature Range: | -10°C to 60°C |
| Management: | Layer 2 unmanaged |
Features
- 10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated plastic housing
Technical details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 8, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
Standards: IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Optical Fiber
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
Connection: 1 removable 3-contact terminal block(s)
Input Current: 0.067 A @ 24 VDC
Input Voltage: 12/24/48 VDC
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Dimensions: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Housing: Plastic
Weight: 90 g (0.2 lb)
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 8, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
Standards: IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Optical Fiber
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
Connection: 1 removable 3-contact terminal block(s)
Input Current: 0.067 A @ 24 VDC
Input Voltage: 12/24/48 VDC
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Dimensions: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Housing: Plastic
Weight: 90 g (0.2 lb)
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
