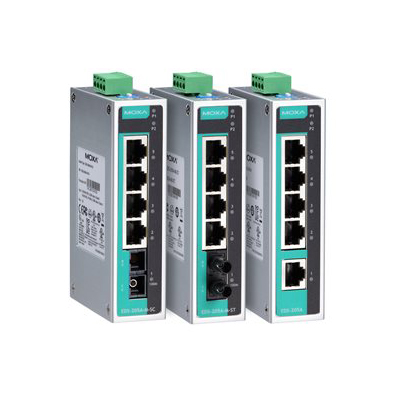

MOXA - EDS-205A
Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, -10 to 60°C operating temperature
Listprice:
£105.27*
Dealer price - Login
23 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
EDS-205A
Our article number:
11101
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - EDS-205A"
The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.
The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
Scope of delivery: MOXA - EDS-205A
The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
Scope of delivery: MOXA - EDS-205A
| Certifications: | ATEX, EN 50121, Marine |
|---|---|
| Connection: | 10 /100, 100 FX |
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 5 Ports |
| Power Supply: | 12V DC, 24V DC, 48V DC |
| Temperature Range: | -10°C to 60°C |
| Management: | Layer 2 unmanaged |
Features
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/GL/LR/ABS/NK)
- -40 to 75°C operating temperature range (-T models)
Technical details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 5, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Optical Fiber
Switch Properties
MAC Table Size: 1 K
Packet Buffer Size: 384 kbits
Processing Type: Store and Forward
Power Parameters
Connection: 1 removable 4-contact terminal block(s)
Input Current: 0.09 A @ 24 VDC
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
DIP Switch Configuration
Ethernet Interface: Broadcast storm protection
Physical Characteristics
Housing: Aluminum
IP Rating: IP30
Dimensions: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Weight: 175 g (0.39 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 5, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Optical Fiber
Switch Properties
MAC Table Size: 1 K
Packet Buffer Size: 384 kbits
Processing Type: Store and Forward
Power Parameters
Connection: 1 removable 4-contact terminal block(s)
Input Current: 0.09 A @ 24 VDC
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
DIP Switch Configuration
Ethernet Interface: Broadcast storm protection
Physical Characteristics
Housing: Aluminum
IP Rating: IP30
Dimensions: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Weight: 175 g (0.39 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
