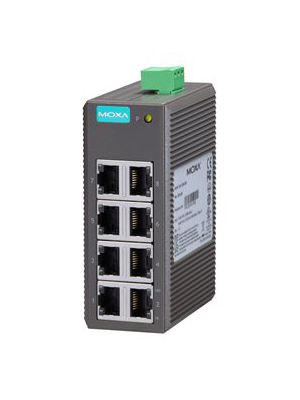

MOXA - EDS-208
Entry-level unmanaged Ethernet switch with 8 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature
Listprice:
£119.19*
Dealer price - Login
28 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
EDS-208
Our article number:
10708
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - EDS-208"
The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.
Scope of delivery: MOXA - EDS-208
Scope of delivery: MOXA - EDS-208
Connection: | 10 /100, 100 FX |
---|---|
Mounting: | DIN-Rail |
Port Number: | 8 Ports |
Power Supply: | 24V DC |
Temperature Range: | -10°C to 60°C |
Management: | Layer 2 unmanaged |
Features
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
- IEEE802.3/802.3u/802.3x support
- Broadcast storm protection
- DIN-rail mounting ability
- -10 to 60°C operating temperature range
Technical details
Ethernet Interface
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector): Auto MDI/MDI-X connection, Full/Half duplex mode
Optical Fiber
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
Power Parameters
Input Voltage: 24 VDC
Input Current: 0.07 A @ 24 VDC
Operating Voltage: 12 to 48 VDC
Connection: 1 removable 3-contact terminal block(s)
Overload Current Protection: 2.5 A @ 24 VDC
Reverse Polarity Protection: Supported
Physical Characteristics
Housing: Plastic
IP Rating: IP30
Dimensions: 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
Weight: 170 g (0.38 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Ethernet Interface
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector): Auto MDI/MDI-X connection, Full/Half duplex mode
Optical Fiber
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
Power Parameters
Input Voltage: 24 VDC
Input Current: 0.07 A @ 24 VDC
Operating Voltage: 12 to 48 VDC
Connection: 1 removable 3-contact terminal block(s)
Overload Current Protection: 2.5 A @ 24 VDC
Reverse Polarity Protection: Supported
Physical Characteristics
Housing: Plastic
IP Rating: IP30
Dimensions: 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
Weight: 170 g (0.38 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
