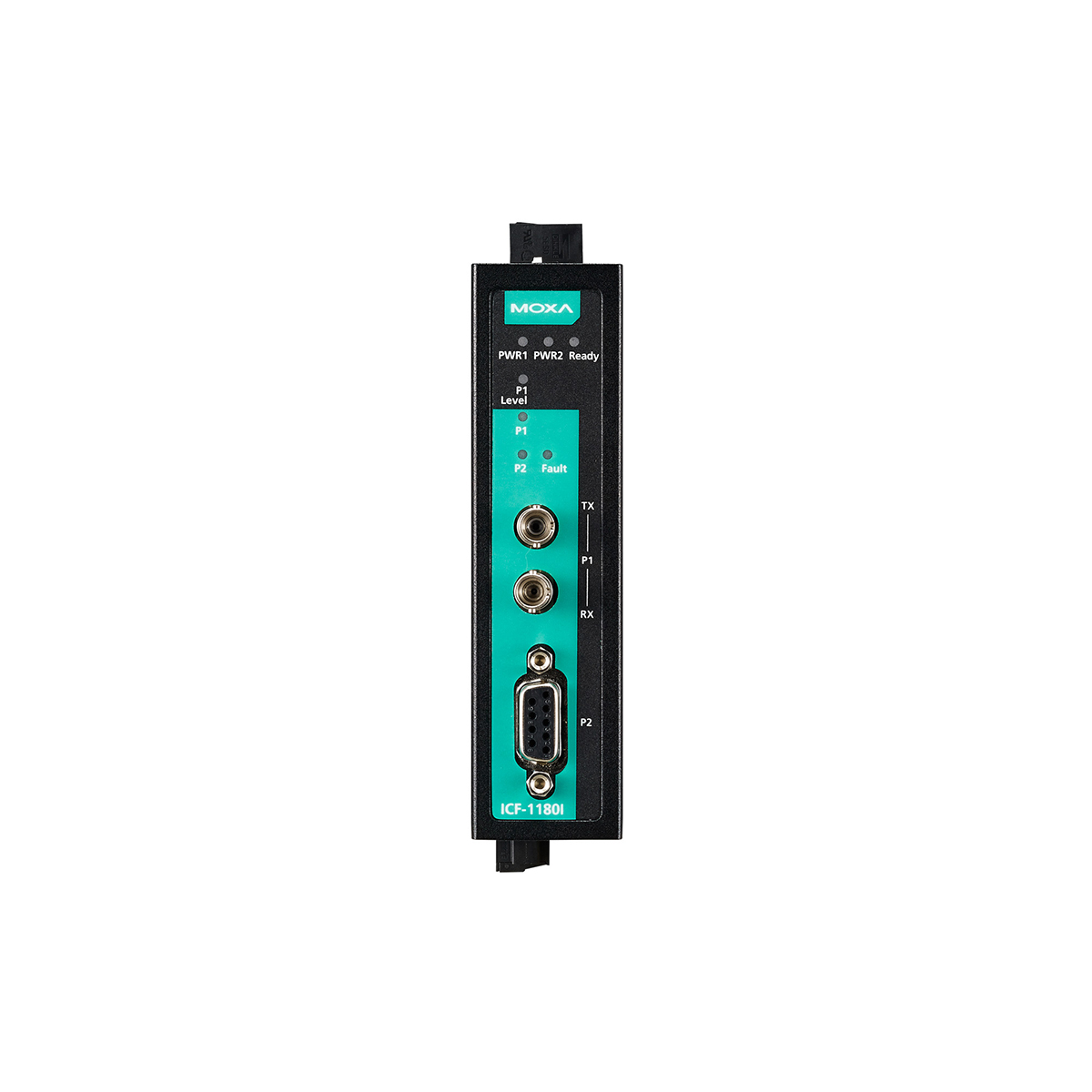

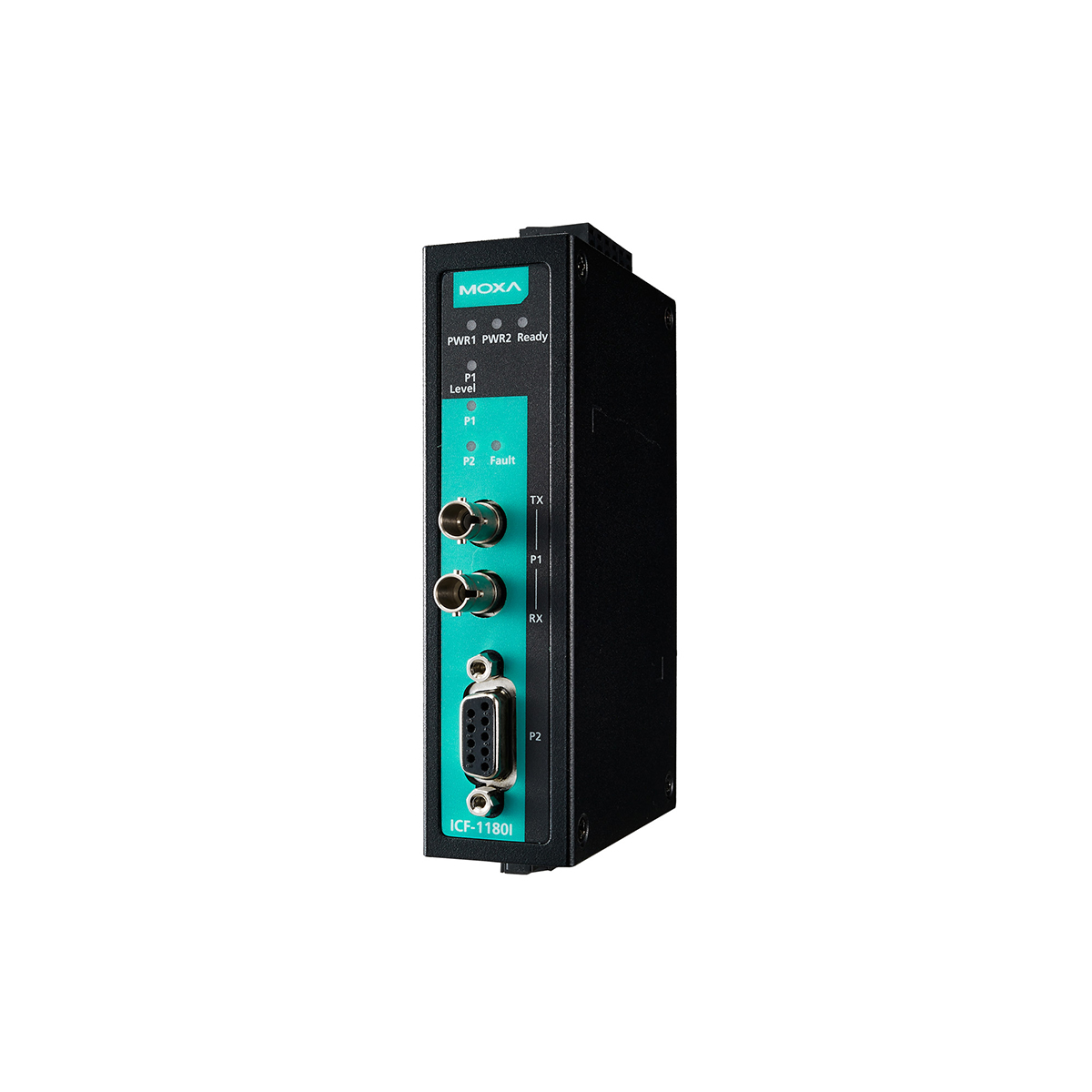

MOXA - ICF-1180I-M-ST
PROFIBUS to fiber converter, multi-mode, ST connector, 0 to 60°C operating temperature
Listprice:
£474.15*
Dealer price - Login
2 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
ICF-1180I-M-ST
Our article number:
12684
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - ICF-1180I-M-ST"
The ICF-1180I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1180I provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.
Scope of delivery: MOXA - ICF-1180I-M-ST
Scope of delivery: MOXA - ICF-1180I-M-ST
| Fieldbus options: | PROFIBUS |
|---|---|
| Isolation: | with isolation |
| Mounting: | DIN-Rail |
| Option: | Copper-to-FiberOptic, Protocol-Transparent |
| Power Supply: | External |
| Temperature Range: | 0°C to 60°C |
Features
- Fiber-cable test function validates fiber communication
- Auto baudrate detection and data speed of up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Fiber inverse feature
- Warnings and alerts by relay output
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy (Reverse power protection)
- Extends PROFIBUS transmission distance up to 45 km
- Wide-temperature model available for -40 to 75°C environments
- Supports Fiber Signal Intensity Diagnosis
Technical details
Serial Interface
Connector: Multi-mode ST connector
Optical Fiber
PROFIBUS Interface
Industrial Protocols: PROFIBUS DP
No. of Ports: 1
Connector: DB9 female
Baudrate: 9600 bps to 12 Mbps
Isolation: 2 kV (built-in)
Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
Power Parameters
Input Current: 269 mA @ 12 to 48 VDC
Input Voltage: 12 to 48 VDC
No. of Power Inputs: 2
Overload Current Protection: Supported
Power Connector: Terminal block (for DC models)
Power Consumption: 269 mA @ 12 to 48 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 30.3 x 115 x 70 mm (1.19 x 4.53 x 2.76 in)
Weight: 180 g (0.39 lb)
Installation: DIN-rail mounting (with optional kit), Wall mounting
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
