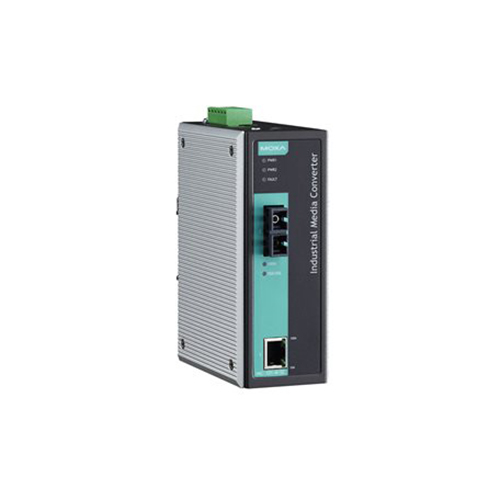

MOXA - IMC-101-M-SC-T-IEX
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode, SC connector, IECEx, -40 to 75°C operating temperature
Listprice:
£372.30*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
IMC-101-M-SC-T-IEX
Our article number:
12959
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - IMC-101-M-SC-T-IEX"
The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification), and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support an operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.
Scope of delivery: MOXA - IMC-101-M-SC-T-IEX
Scope of delivery: MOXA - IMC-101-M-SC-T-IEX
| Certifications: | ATEX |
|---|---|
| Connection: | Fast Ethernet |
| Mounting: | DIN-Rail |
| Option: | Copper-to-FiberOptic |
| Power Supply: | External |
| Temperature Range: | -40°C to 75°C |
Features
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Power failure, port break alarm by relay output
- Redundant power inputs
- -40 to 75°C operating temperature range (-T models)
- Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
Techncial details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 1
100BaseFX Ports (multi-mode SC connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Optical Fiber
Power Parameters
Input Current: 200 mA @ 12 to 45 VDC
Input Voltage: 12 to 45 VDC
Overload Current Protection: Supported
Power Connector: Terminal block
Power Consumption: 200 mA @ 12 to 45 VDC
Physical Characteristics
IP Rating: IP30
Housing: Metal
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 630 g (1.39 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 1
100BaseFX Ports (multi-mode SC connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Optical Fiber
Power Parameters
Input Current: 200 mA @ 12 to 45 VDC
Input Voltage: 12 to 45 VDC
Overload Current Protection: Supported
Power Connector: Terminal block
Power Consumption: 200 mA @ 12 to 45 VDC
Physical Characteristics
IP Rating: IP30
Housing: Metal
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 630 g (1.39 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
