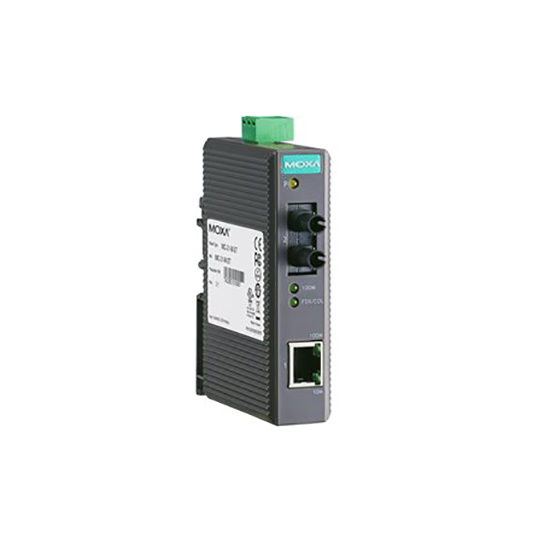

MOXA - IMC-21-M-ST
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode, ST connector
Listprice:
£160.65*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
IMC-21-M-ST
Our article number:
10680
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - IMC-21-M-ST"
The IMC-21 industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters are a cost-effective solution that run on either a 12 or 48 VDC power input and can operate reliably in temperatures ranging from -10 to 60°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21 converters are easy to mount on a DIN rail or in distribution boxes.
Scope of delivery: MOXA - IMC-21-M-ST
Scope of delivery: MOXA - IMC-21-M-ST
| Isolation: | without isolation |
|---|---|
| Mounting: | DIN-Rail |
| Option: | Copper-to-FiberOptic |
| Power Supply: | External |
| Temperature Range: | -10°C to 60°C |
Features
- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFPT)
- DIP switches to select FDX/HDX/10/100/Auto/Force
Technical details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 1
100BaseFX Ports (multi-mode ST connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Optical Fiber
Power Parameters
Input Current: 12 to 48 VDC, 0.271A (Max.)
Input Voltage: 12 to 48 VDC
Overload Current Protection: Supported
Physical Characteristics
IP Rating: IP30
Housing: Plastic
Dimensions: 25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)
Weight: 125 g (0.27 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 1
100BaseFX Ports (multi-mode ST connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Optical Fiber
Power Parameters
Input Current: 12 to 48 VDC, 0.271A (Max.)
Input Voltage: 12 to 48 VDC
Overload Current Protection: Supported
Physical Characteristics
IP Rating: IP30
Housing: Plastic
Dimensions: 25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)
Weight: 125 g (0.27 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
