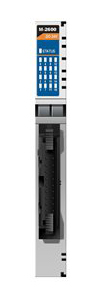

MOXA - M-2601
Module for ioLogik 4000 series, 16 DOs, 24 VDC, 0.5 A, Source
Manufacturer part number:
M-2601
Our article number:
10361
Questions? We will be happy to advise you! → Contact form
Product is End of Life!
New product:
Product information "MOXA - M-2601"
The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.
Scope of delivery: MOXA M-2601
Scope of delivery: MOXA M-2601
| I/O Interfaces: | Digital Output, Temperature |
|---|---|
| Interface: | Ethernet, Serial RS485 |
| Protocol: | ASCII, ModBus, TCP |
| Temperature Range: | Standard Temperature Range |
Features
- I/O expansion without a backplane
- Active communication with MX-AOPC UA Server
- Supports SNMP v1/v2c
- Easy configuration with Modular ioAdmin utility
- Friendly configuration via web browser
- Simplifies I/O management with MXIO library for Windows or Linux
Technical details
Input/Output Interface
Digital output channels: 16
Isolation: 3k VDC or 2k Vrms
Digital Outputs
Connector: I/O flat cable, 20-pin
Current rating: 500 mA per channel
I/O type: Sink
I/O mode: DO
Power Parameters
Power Consumption: 60 mA @ 5 VDC
Physical Characteristics
Housing: Plastic
Dimensions: 14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in)
Weight: Under 80 g
Installation: DIN-rail mounting
Wiring: I/O cable, 14 to 28 AWG
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Input/Output Interface
Digital output channels: 16
Isolation: 3k VDC or 2k Vrms
Digital Outputs
Connector: I/O flat cable, 20-pin
Current rating: 500 mA per channel
I/O type: Sink
I/O mode: DO
Power Parameters
Power Consumption: 60 mA @ 5 VDC
Physical Characteristics
Housing: Plastic
Dimensions: 14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in)
Weight: Under 80 g
Installation: DIN-rail mounting
Wiring: I/O cable, 14 to 28 AWG
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
