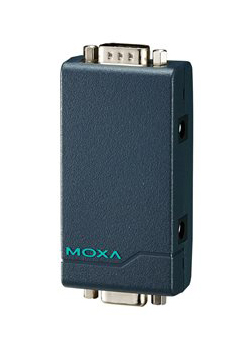

MOXA - TCC-82
Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection
Listprice:
£67.86*
Dealer price - Login
Delivery time: Goods are ordered, available again shortly
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
TCC-82
Our article number:
10392
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - TCC-82"
The TCC-82 provides full electrical isolation for bidirectional serial communication between two RS-232 devices in a compact, industrial-grade package. Both sides of an RS-232 connection are isolated optically to provide perfect protection against lightning surges, accidental high-voltage shorts, and ground loops. The built-in, wide range isolators are tested to ensure that they can withstand more than 4 kV rms input to output for one minute. This means that the TCC-82 not only meets the requirements of general serial data communications, but also the high standards required by industrial automation and medical applications. The TCC-82 protects the TxD and RxD data lines, and it also protects the RTS and CTS handshake lines for a total of four isolated channels to provide complete protection of your RS-232 applications.
Scope of delivery: MOXA - TCC-82
Scope of delivery: MOXA - TCC-82
| Isolation: | with isolation |
|---|---|
| RS 232 to x: | RS 232 |
Features
- Four channels of 4 kV RMS isolation for 1 minute
- External power source supported but not required
- Automatic baudrate detection
- Compact size
Technical details
Serial Interface
Connector: DB9 male
No. of Ports: 2
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Serial Signals
RS-232: TxD, RxD, RTS, CTS, GND
Power Parameters
Input Current: 5 to 12 VDC, 20 mA (max.)
Input Voltage: 5 to 12 VDC
No. of Power Inputs: 1
Overload Current Protection: Supported
Source of Input Power: Power input jack
Physical Characteristics
Housing: Plastic
IP Rating: IP30
Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
Weight: 60 g (0.13 lb)
Installation: Desktop
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Serial Interface
Connector: DB9 male
No. of Ports: 2
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Serial Signals
RS-232: TxD, RxD, RTS, CTS, GND
Power Parameters
Input Current: 5 to 12 VDC, 20 mA (max.)
Input Voltage: 5 to 12 VDC
No. of Power Inputs: 1
Overload Current Protection: Supported
Source of Input Power: Power input jack
Physical Characteristics
Housing: Plastic
IP Rating: IP30
Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
Weight: 60 g (0.13 lb)
Installation: Desktop
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
