MOXA - UPort 207
7-port entry-level USB hub, adaptor included
Listprice:
£211.20*
Dealer price - Login
1 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
UPort 207
Our article number:
11437
Questions? We will be happy to advise you! → Contact form

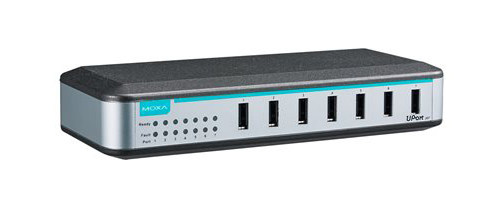

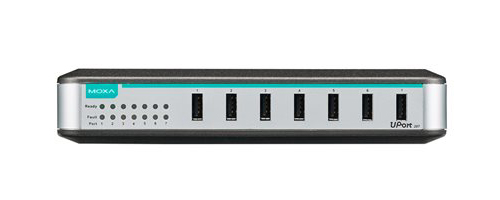

Product information "MOXA - UPort 207"
The UPort® 204 and UPort® 207 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. The UPort® 204 and UPort® 207 have received the USB-IF Hi-Speed certification and are fully plug and play. 500 mA of power per port ensures that your USB devices will function properly, and using 12 to 40 VDC of power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
Scope of delivery: MOXA - UPort 207
Scope of delivery: MOXA - UPort 207
| Connection: | USB Port |
|---|---|
| Serial Ports: | 7 Ports |
Features
- Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
- USB-IF certification
- 15 kV ESD Level 4 protection for all USB ports
- Comprehensive diagnostic LEDs
- Full 500 mA of power per port
- Chooses bus power or external power
Technical details
USB Interface
Speed: 12 Mbps, 480 Mbps
USB Connector: USB Type B
USB Standards: USB 1.1/2.0 compliant
No. of USB Ports: 7
Power Parameters
Input Voltage: 12 to 40 VDC
Input Current: 2.17 A @ 12 VDC
Physical Characteristics
Housing: Polycarbonate (PC)
Dimensions: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
Weight: Packaged: 890 g (1.96 lb), Product only: 875 g (1.93 lb)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
USB Interface
Speed: 12 Mbps, 480 Mbps
USB Connector: USB Type B
USB Standards: USB 1.1/2.0 compliant
No. of USB Ports: 7
Power Parameters
Input Voltage: 12 to 40 VDC
Input Current: 2.17 A @ 12 VDC
Physical Characteristics
Housing: Polycarbonate (PC)
Dimensions: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
Weight: Packaged: 890 g (1.96 lb), Product only: 875 g (1.93 lb)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
