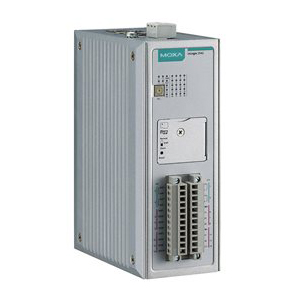

MOXA - ioLogik 2512
Universal controller, 8 DIs, 8 DIOs, Click&Go Plus, -10 to 60°C operating temperature
Listprice:
£496.40*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
ioLogik 2512
Our article number:
12983
Questions? We will be happy to advise you! → Contact form
Product information "MOXA - ioLogik 2512"
ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.
One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.
Scope of delivery: MOXA - ioLogik 2512
One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.
Scope of delivery: MOXA - ioLogik 2512
| I/O Interfaces: | Digital Input, Digital Output, I/O Sink |
|---|---|
| Interface: | Ethernet, Serial RS485 |
| Protocol: | CGI, ModBus, SNMP, TCP, UDP |
Features
Programming-Free Click&Go Plus™ Logic
Click&Go Plus™ control logic supports up to 48 rules and 8 conditions/actions. In addition, its graphical user interface provides 3 logic gates and 3 multi-layers, helping you build more powerful and efficient IO solutions. Once you finish setting up your Click&Go Plus™ logic rules, IOxpress’s easy-to-use simulation function can be used to find potential errors in your Click&Go Plus™ rules before uploading them to your online devices.
Multi-Protocol Data Concentrator
By supporting multiple protocols, the ioLogik 2500 improves the efficiency of collecting field-site data and then sending it to upper-level systems. For field-site data collection, an ioLogik 2500 can collect data from other third-party devices via both Modbus TCP and Modbus RTU, and also lets you link up to 8 ioLogik E1200 modules to create a versatile I/O array with over 100 different I/O channels, allowing all field-site data to be accessed by upper-level systems. For the upper-level systems, the ioLogik 2500 supports Modbus TCP, SNMP, SNMP Trap, RESTful API, Active OPC tag, and C++ library for easy integration with various IT/OT systems, making the ioLogik 2500 the perfect data concentrator for connecting field sites to your network.
Data Completeness with Local Storage Data Logging
The ioLogik 2500 supports microSD cards, turning it into a powerful data logger for storing valuable data. Important data from field sites can be accessed remotely by different systems via an FTP, and the ioLogik's data completeness function enables real-time monitoring of data through MX-AOPC UA Suite when the network goes down unexpectedly.
Remote Access Cellular I/O via Cellular Network
Most carriers provide dynamic and private IP address SIM cards, and although private IP cards are cheaper, they cannot be used to provide direct access to the cloud. Moxa’s Cellular Data Access software enables this type of connection by establishing a special data route between the cellular models and the cloud.
Only one public IP address is needed to use Moxa’s Cellular Data Access software, allowing you to easily update internal register values, change output channel status, and modify the configurations of devices connected to the device, all through the cloud.
Programming-Free Click&Go Plus™ Logic
Click&Go Plus™ control logic supports up to 48 rules and 8 conditions/actions. In addition, its graphical user interface provides 3 logic gates and 3 multi-layers, helping you build more powerful and efficient IO solutions. Once you finish setting up your Click&Go Plus™ logic rules, IOxpress’s easy-to-use simulation function can be used to find potential errors in your Click&Go Plus™ rules before uploading them to your online devices.
Multi-Protocol Data Concentrator
By supporting multiple protocols, the ioLogik 2500 improves the efficiency of collecting field-site data and then sending it to upper-level systems. For field-site data collection, an ioLogik 2500 can collect data from other third-party devices via both Modbus TCP and Modbus RTU, and also lets you link up to 8 ioLogik E1200 modules to create a versatile I/O array with over 100 different I/O channels, allowing all field-site data to be accessed by upper-level systems. For the upper-level systems, the ioLogik 2500 supports Modbus TCP, SNMP, SNMP Trap, RESTful API, Active OPC tag, and C++ library for easy integration with various IT/OT systems, making the ioLogik 2500 the perfect data concentrator for connecting field sites to your network.
Data Completeness with Local Storage Data Logging
The ioLogik 2500 supports microSD cards, turning it into a powerful data logger for storing valuable data. Important data from field sites can be accessed remotely by different systems via an FTP, and the ioLogik's data completeness function enables real-time monitoring of data through MX-AOPC UA Suite when the network goes down unexpectedly.
Remote Access Cellular I/O via Cellular Network
Most carriers provide dynamic and private IP address SIM cards, and although private IP cards are cheaper, they cannot be used to provide direct access to the cloud. Moxa’s Cellular Data Access software enables this type of connection by establishing a special data route between the cellular models and the cloud.
Only one public IP address is needed to use Moxa’s Cellular Data Access software, allowing you to easily update internal register values, change output channel status, and modify the configurations of devices connected to the device, all through the cloud.
Techncial details
Memory
microSD Slot: Up to 32 GB (SD 2.0 compatible) (Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.)
Control Logic
Language: Click&Go Plus
Input/Output Interface
Digital Input Channels: 8
Configurable DIO Channels (by software): 8
Buttons: Reset button
Isolation: 3k VDC or 2k Vrms
Digital Inputs
Connector: Screw-fastened Euroblock terminal
Sensor Type: Dry contact, Wet contact (NPN or PNP)
I/O Mode: DI or event counter
Dry Contact: On: short to GND, Off: open
Wet Contact (DI to COM): On: 10 to 30 VDC, Off: 0 to 3 VDC
Counter Frequency: 2.5 kHz
Digital Filtering Time Interval: Software configurable
Points per COM: 8 channels
Digital Outputs
Connector: Screw-fastened Euroblock terminal
I/O Type: Sink
I/O Mode: DO or pulse output
Current Rating: 500 mA per channel
Pulse Output Frequency: 5 kHz (max.)
DIO Output Leakage Current: < 1 mA @ 30 VDC
Over-Current Protection: 1.5 A per channel @ 25°C
Over-Temperature Shutdown: 175°C (typical), 150°C (min.)
Over-Voltage Protection: 45 VDC (typical)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 4, 1 MAC address
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
Industrial Protocols: CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap
Management: BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
MIB: Device Settings MIB
Security: HTTPS/SSL
Time Management: SNTP
LED Interface
LED Indicators: PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Serial Interface
Baudrate: 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
Connector: 8-pin RJ45
Data Bits: 5, 6, 7, 8
Flow Control: None, RTS/CTS, XON/XOFF
No. of Ports: 2
Parity: None, Even, Odd
Serial Standards: RS-232, RS-422, RS-485
Stop Bits: 1, 2
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
Industrial Protocols: Modbus RTU Master
Platform
Real-time Clock (RTC): Real-time clock with capacitor backup
Power Parameters
Power Connector: Screw-fastened Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 254 mA @ 24 VDC, 529 mA @ 12 VDC, 133 mA @ 48 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
Weight: 1,265 g (2.79 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Wiring: I/O cable, 16 to 26 AWG; Power cable, 12 to 24 AWG
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Memory
microSD Slot: Up to 32 GB (SD 2.0 compatible) (Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.)
Control Logic
Language: Click&Go Plus
Input/Output Interface
Digital Input Channels: 8
Configurable DIO Channels (by software): 8
Buttons: Reset button
Isolation: 3k VDC or 2k Vrms
Digital Inputs
Connector: Screw-fastened Euroblock terminal
Sensor Type: Dry contact, Wet contact (NPN or PNP)
I/O Mode: DI or event counter
Dry Contact: On: short to GND, Off: open
Wet Contact (DI to COM): On: 10 to 30 VDC, Off: 0 to 3 VDC
Counter Frequency: 2.5 kHz
Digital Filtering Time Interval: Software configurable
Points per COM: 8 channels
Digital Outputs
Connector: Screw-fastened Euroblock terminal
I/O Type: Sink
I/O Mode: DO or pulse output
Current Rating: 500 mA per channel
Pulse Output Frequency: 5 kHz (max.)
DIO Output Leakage Current: < 1 mA @ 30 VDC
Over-Current Protection: 1.5 A per channel @ 25°C
Over-Temperature Shutdown: 175°C (typical), 150°C (min.)
Over-Voltage Protection: 45 VDC (typical)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 4, 1 MAC address
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
Industrial Protocols: CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap
Management: BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
MIB: Device Settings MIB
Security: HTTPS/SSL
Time Management: SNTP
LED Interface
LED Indicators: PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Serial Interface
Baudrate: 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
Connector: 8-pin RJ45
Data Bits: 5, 6, 7, 8
Flow Control: None, RTS/CTS, XON/XOFF
No. of Ports: 2
Parity: None, Even, Odd
Serial Standards: RS-232, RS-422, RS-485
Stop Bits: 1, 2
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
Industrial Protocols: Modbus RTU Master
Platform
Real-time Clock (RTC): Real-time clock with capacitor backup
Power Parameters
Power Connector: Screw-fastened Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 254 mA @ 24 VDC, 529 mA @ 12 VDC, 133 mA @ 48 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
Weight: 1,265 g (2.79 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Wiring: I/O cable, 16 to 26 AWG; Power cable, 12 to 24 AWG
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
