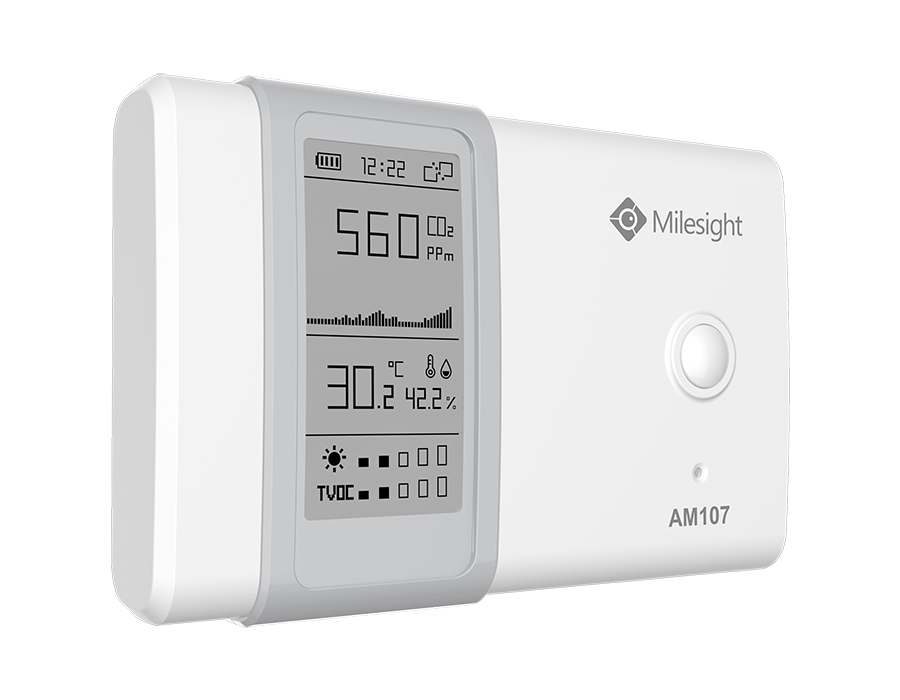

Milesight - AM107
Ambient monitoring sensor (temperature, humidity, PIR, light, CO2, TVOC, air pressure)
Listprice:
£261.00*
Dealer price - Login
14 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
AM107
Our article number:
740014
Questions? We will be happy to advise you! → Contact form
Product information "Milesight - AM107"
The AM100 series is a compact indoor climate monitoring sensor that measures temperature, humidity, light, CO2 concentration, TVOC, barometric pressure and motion. This data is displayed on the e-ink screen in real time, allowing one to quantify the indoor environment and comfort. The AM100 series is widely used in offices, shops, classrooms, hospitals, etc. In addition to the screen display, sensor data is also transmitted via LoRaWAN® technology. With this low power consumption technology, the AM100 series can operate for a year on 2 AA batteries. Combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.
Scope of delivery: Milesight AM107
Scope of delivery: Milesight AM107
| Monitoring: | Air Flow & Air Pressure, Gas, Humidity, Light, Security, Temperature |
|---|
Features
- Integrated with multiple sensors such as humidity, temperature, CO2, light, barometric pressure, etc.
- Visual display via e-ink screen
- Standard AA batteries
- One year of operation without changing batteries
- Equipped with NFC and Type-C connector for easy configuration
- Compatible with standard LoRaWAN® gateways and network servers
- Fast and easy management with Milesight IoT cloud solution
Technical details
Hardware
Sensors
Hardware
- Frequency: CN470 / RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923
- Tx Power: 20 dBm
- Sensitivity: -147 dBm at 300 Bit/s
- Mode: OTAA / ABP
- Power supply: 2 × alkaline AA batteries
- Battery life: 1.5 years (SF7); 1.2 years (SF12)
Sensors
- Temperature:
Range: -20 ° C to + 70 ° C (operating temperature for sieve: 0-45 ° C).
Accuracy: ± 0.3 ° C (0 ° C - 70 ° C), ± 0.6 ° C (-40 ° C - 0 ° C) - Humidity:
Range: 0% to 100% RH
Accuracy: ± 3% rH (10% - 90%), ± 5% rH (0% - 10%, 90% - 100%) - PIR:
Detection range: 94 ° horizontal, 82 ° vertical
Detection distance: 5 m - Light:
Range: 60000 lux (visible + IR, IR).
Accuracy: ± 30% - CO 2:
Range: 400 - 5000 ppm
Accuracy: ± 30 ppm or ± 3% of reading - TVOC:
Range: 0 - 60000 ppb (total VOC)
Accuracy: ± 15% of reading
Long-term stability: 1.3% accuracy drift per year - Air pressure:
Range: 300 - 1100 hPa (-40 ° C - 85 ° C).
Accuracy: ± 1 hPa
