Milesight - UR75-504AE-P-W2
Industrial Cellular Router
Listprice:
£569.50*
Dealer price - Login
Delivery time: Goods are ordered, available again shortly
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
UR75-504AE-P-W2
Our article number:
740127
Questions? We will be happy to advise you! → Contact form
Product information "Milesight - UR75-504AE-P-W2"
Milesight UR75 is an high-performance industrial-grade 5G router designed for a variety of M2M/IoT applications. Made for high-performance, industrial standard, it has quad-core CPU and cellular module that supports global WCDMA, 4G LTE and 5G sub-6 Ghz NSA and SA network.
Meanwhile, UR75 also supports 5-port Gigabit Ethernet switch, RS232/RS485 serial ports and Digital input/ Digital output, which enable users to scale up M2M application combining data collection and high-speed transmission in limited time and budget.
UR75 is particularly suitable for smart grid, digital media installations, industrial automation, telemetry equipment, medical device, digital factory, finance, payment device, environment protection, water conservancy and soon.
Scope of delivery: Milesight - UR75-504AE-P-W2
Meanwhile, UR75 also supports 5-port Gigabit Ethernet switch, RS232/RS485 serial ports and Digital input/ Digital output, which enable users to scale up M2M application combining data collection and high-speed transmission in limited time and budget.
UR75 is particularly suitable for smart grid, digital media installations, industrial automation, telemetry equipment, medical device, digital factory, finance, payment device, environment protection, water conservancy and soon.
Scope of delivery: Milesight - UR75-504AE-P-W2
| Bandwidth: | 4G, 5G |
|---|---|
| Connection: | Digitale I/O, Ethernet Port, Serial Ports RS232, RS422/485, USB Port, WLAN, Wireless |
| Options: | LTE, WiFi |
| Power Supply: | 12 - 48V DC |
| Temperature Range: | Standard Temperature Range |
| Wireless Option: | GNSS / GPS / Glonass / Beidou, WiFi |
Features
- Industrial-grade quad-core CPU ARM Cortex-A55 with big memory, providing high performance for data transmission
- Global 5G (NSA/SA)/4G LTE network with dual SIM cards for backup between multiple carrier networks
- Dual carrier aggregation (2CC CA) is supported in the 5G Sub-6GHz, enabling wider signal coverage with superb download speed up to 4.67 Gbps
- Plug& play, supply lightning transmission via Gigabit Ethernet ports or USB Type-C interface
- Support Wi-Fi 6, allows 2.4G & 5G dual band concurrent connections up to 1.8 Gbps download speed
- Wide operating temperature range from -30°C to 60°C and industrial design for harsh environment
- Rugged enclosure with IP30 protection, optimized for DIN rail or shelf mounting.

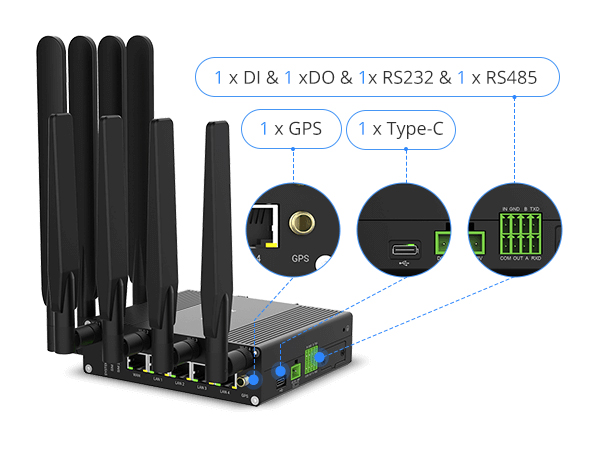

- Equipped with I/O, serial port, GPS for industrial transmission applications
- Automated failover/failback backupamong Ethernet, Cellular (dual SIM) and Wi-Fi
- Secure transmission with VPN tunnels like IPsec/OpenVPN
- Embedded with hardware watchdog to automatically recover from various failures, ensures the highest level of availability
- Equipped with multiple security protection measures such as ACL, DMZ, SYN-Flood protection, and data filtering to ensure that the network is secured.
- Support policy routing and NAT for more secure intranet access
- DeviceHub provides easy setup, mass configuration, and centralized management of remote devices.
- The user-friendly web interface design and more than one option for upgrading. Helps the administrator to manage the device easily
- Support multilevel user authorities for security management
Technical details
Hardware System
Hardware System
- CPU: Quad-core ARM Cortex-A55，2 GHz
- Memory: 1 GB LDDR4x RAM and 1 GB NAND Flash
- Extendable Storage: 1 × M.2 NVMe SSD Interface
- Network: 5G NR SA & NSA/4G LTE/WCDMA
- Frequency:
5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE TDD: B38/B40/B41/B42/B43
WCDMA: B1/B5/B8 - Antenna: 4 × 50 Ω SMA Connectors (Center PIN: SMA Female)
- SIM Slot: 2（Mini SIM-2FF）

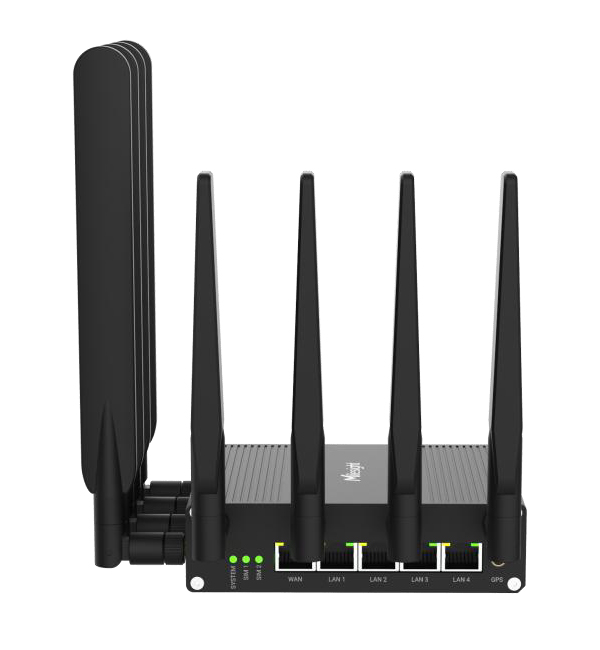

- Numbers: 5 × 10/100/1000 Mbps
- Property: 1 × WAN +4 × LAN
- Mode: Full or Half Duplex (Auto-Sensing)
- PoE: 4 × 802.3 af/at PoE PSE on LAN Ports (Optional)
- Antenna: 4 × 50 Ω SMA Connectors (Center PIN: RP-SMA Female)
- Standards: IEEE 802.11b/g/n/ax 2 x 2 MIMO, 2.4 GHz; IEEE 802.11a/n/ac/ax 2 x 2 MIMO, 5 GHz
- Max Bit Rate: 2.4 GHz: 600 Mbps, 5 GHz: 1200 Mbps
- Modes: AP and Client1 Mode
- Security: WEP/WPA/WPA2 authentication, WEP/TKIP/AES encryption
- Antenna: 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
- Technology: GPS/GLONASS/Beidou/Galileo/QZSS
- Protocol: NMEA 0183
- Numbers: 1 × RS232 + 1 × RS485
- Connector: 3.5 mm Terminal Block
- Baud Rate: 300bps to 230400bps
- Numbers: 1 × DI (Dry Contact) + 1 × DO (Wet Contact)， Galvanic Isolation
- Connector: 3.5 mm Terminal Block
- Maximum V/A: 0.3A@30VDC (DO)
- USB: 1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug
- Reset Button: 1 × RESET
- LED Indicators: 1 × SYSTEM，1 × SIM1，1 × SIM2
- Built-in: Watchdog, Timer
- Network Protocols: IPv4/IPv6, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc.
- VPN: IPsec, OpenVPN, LT2P, PPTP
- Security: Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering(IP& MAC & Domain)
- Management: Web, DeviceHub, MilesightVPN
- Reliability: WAN Failover, Dual SIM Backup
- Serial Port: Transparent (TCP Client/Server, UDP), Modbus Master, Modbus Gateway(Modbus RTU to Modbus TCP)
- Power Connector: 2-pin 3.5 mm Terminal Block
- Power Input: 1. 9-48 VDC, with Surge-Protection and Reverse Polarity Protection; 2. 5V, 3A by Type-C Port
- Power Consumption (In Non-PoE mode): Without Wi-Fi: Typical 2.8 W, Max 5.5 W; With Wi-Fi: Typical 7 W, Max 13.7 W
- Ingress Protection: IP30
- Housing: Metal
- Dimension: 135 x 115 x 36.4 mm (5.31 x 4.53 x 1.43 in)
- Installation: Desktop, Wall or DIN Rail Mounting
- Operating Temperature: -30°C to +60°C (-22F to +140F)
- Storage Temperature: -40°C to +85°C (-40F to +185F)
- Ethernet Isolation: 1.5 kV RMS
- Relative Humidity: 0% to 95% (Non-condensing) at 25°C/77F
