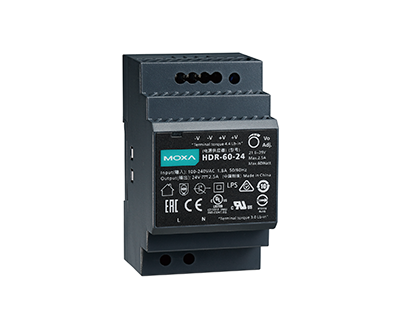

Moxa - HDR-60-24 - SNT
£60.72*
24 pieces available, delivery time: 5 - 7 working days
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
The HDR-60-24 Power Supply Series has been specifically designed for industrial applications. The small form factor makes it ideal for installation in limited spaces, and the devices have been built to operate between -30 to 70°C.
The devices have a plastic housing and support AC input ranges from 85 to 264 VAC and conform to the EN 61000-3-2 standard, which the European Union uses to regulate harmonic current. Furthermore, the devices are equipped with constant current mode for overload protection.
PACKAGE CONTENTS: HDR-60-24 - SNT
Features
- DIN-rail mounted power supply
- Slim form factor that is ideal for cabinet installation
- Universal AC power input
- High power conversion efficiency
Technical Specifications
Output Power Parameters
- Wattage: 60 W
- Voltage: 24 VDC
- Current Rating: 0 to 2.5 A
- Ripple and Noise: 150 mVp-p
- Voltage Adjustment Range: 21.6 to 29 VDC
- Setup/Rise Time at Full Load:
- 500 ms, 50 ms at 230 VAC
- 500 ms, 50 ms at 115 VAC
- Typical Hold Up Time at Full Load:
- 30 ms at 230 VAC
- 12 ms at 115 VAC
Input Power Parameters
- Voltage Range:
- 100 to 240 VAC (50 to 60 Hz)
- 120 to 370 VDC
- Typical Efficiency: 90%
- Typical Current: 0.8 A @ 230 VAC, 1.2 A @ 115 VAC
- Inrush Current (cold start): 60 A @ 230 VAC, 30 A @ 115 VAC
Overload Protection
- Rated Output Power: 105 to 160%
- Protection Type: Constant current limiting, recovers automatically after fault condition is removed
Overvoltage Protection
- Overvoltage Range: 30 to 36 V
- Protection Type: Shut down operating voltage, repower on to recover
Physical Characteristics
- Housing: Plastic
- Dimensions: 52.5 x 90 x 54.5 mm (2.07 x 3.54 x 2.15 in)
- Weight: 230 g (0.5 lb)
Environmental Limits
- Operating Temperature: -30 to 70°C (-22 to 158°F)
- Max. Operating Temperature at Full Load: 45°C (113°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 20 to 90% (non-condensing)
Standards and Certifications
- Safety:
- UL 508
- EN 62368-1
- UL 62368-1
- IEC 62368-1
- EMC:
- EN 55032/35
- EN 61000-3-2 Class A
- EN 61000-3-3
- EN IEC 61204-3
- EN IEC 61000-6-2
- EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
- IEC 61000-4-4 EFT: Power: 2 kV
- IEC 61000-4-5 Surge: Power: 4 kV
- IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms
- IEC 61000-4-8 PFMF: 30 A/m
- IEC 61000-4-11
MTBF
- Time: 927,560 hrs
- Standards: MIL-HDBK-217F
Warranty
- Warranty Period: 3 years
- Details See www.moxa.com/warranty
