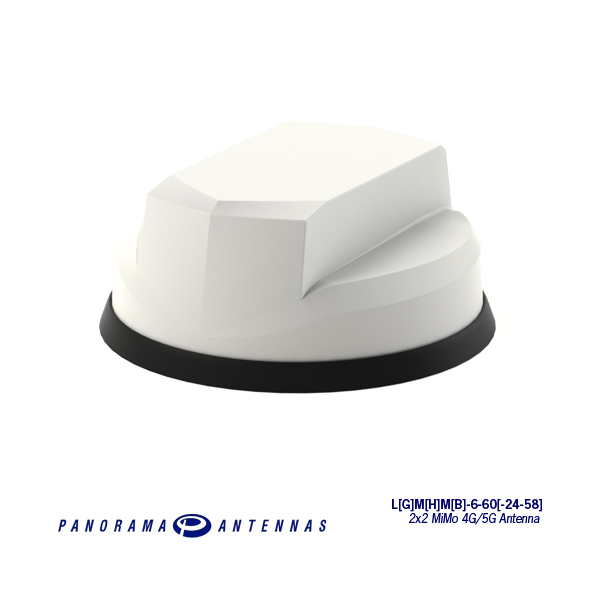

Panorama Antennas - LGMMB-6-60
2x2 MiMo 4G / 5G + GPS / GNSS vehicle antenna
Listprice:
£208.80*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
LGMMB-6-60
Questions? We will be happy to advise you! → Contact form
Product information "Panorama Antennas - LGMMB-6-60"
The L[G]M[H]M[B]-6-60-[24-58] - "Great White" is a range of high-performance MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2x2, 3x3 or 4x4 or 6x6 MiMo/Diversity at 2.4/5.0GHz.
The L[G]M[H]M[B]-6-60-[24-58] consists of up to 9 elements; two isolated high-performance antenna elements covering 617-960/1427-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Scope of delivery: Panorama Antennas - LGMMB-6-60
The L[G]M[H]M[B]-6-60-[24-58] consists of up to 9 elements; two isolated high-performance antenna elements covering 617-960/1427-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Scope of delivery: Panorama Antennas - LGMMB-6-60
| Antennas: | Indoor Antenna, Outdoor Antenna |
|---|---|
| Bandwidth: | 4G, 5G |
| Certifications: | E-Mark |
Features
- The 'Great White' 5G version
- Up to 9 functions inside a low profile housing
- Ground plane independent antenna solution
- Two independently fed Wideband cellular 600-6000MHz elements
- Optional GPS/GNSS and up to 6x6 MiMo WiFi
- Supplied as antenna only or full kit with cable assemblies
Technical details
Electrical Data
LTE Frequencies: 617-960/1427-6000MHz
Global Positioning: Optional GPS / GNSS 1562-1612
Wifi Frequencies: MiMo - 2.4/5.0GHz - (Optional)
Peak Gain (dBi): 6
LTE MiMo: 2x2
WiFi MiMo: Optional 2x2; Optional 3x3; Optional 4x4; Optional 6x6
Max Input Power (W): 20
Pattern: Omni-directional
Ground Plane Independent: Yes
Mechanical Data
Available Colours: Black or White
Height (mm): 75
Diameter (mm): 176
Operating Temperature: -40 / +85°C
Mounting Data
Mounting Type: Panel Mount
Mounting Method: 18mm (3/4") Mounting Bush
Approvals Data
IP Rating: IP69K
Electrical Data
LTE Frequencies: 617-960/1427-6000MHz
Global Positioning: Optional GPS / GNSS 1562-1612
Wifi Frequencies: MiMo - 2.4/5.0GHz - (Optional)
Peak Gain (dBi): 6
LTE MiMo: 2x2
WiFi MiMo: Optional 2x2; Optional 3x3; Optional 4x4; Optional 6x6
Max Input Power (W): 20
Pattern: Omni-directional
Ground Plane Independent: Yes
Mechanical Data
Available Colours: Black or White
Height (mm): 75
Diameter (mm): 176
Operating Temperature: -40 / +85°C
Mounting Data
Mounting Type: Panel Mount
Mounting Method: 18mm (3/4") Mounting Bush
Approvals Data
IP Rating: IP69K
