QuWireless - A140S-A
Integrated multi-band LTE omni antenna + place to install Teltonika TRB140 (All-in-one)
Listprice:
£75.68*
Dealer price - Login
Delivery time: 3 - 4 weeks
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
A140S-A
Our article number:
860005
Questions? We will be happy to advise you! → Contact form
Product information "QuWireless - A140S-A"

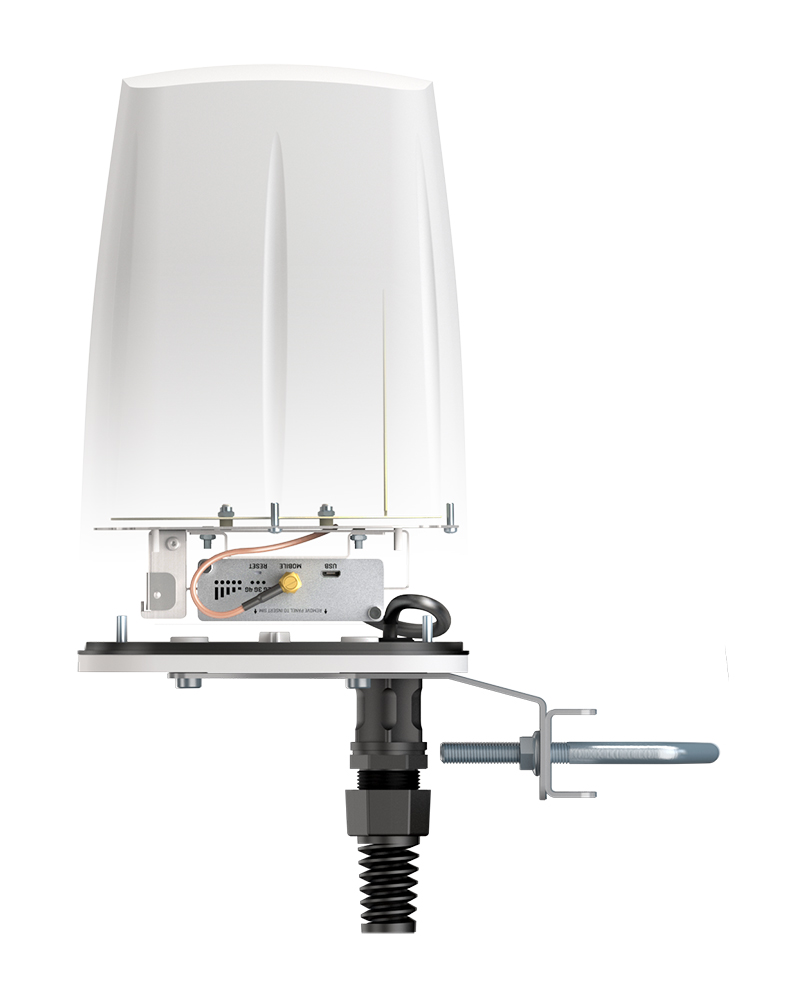

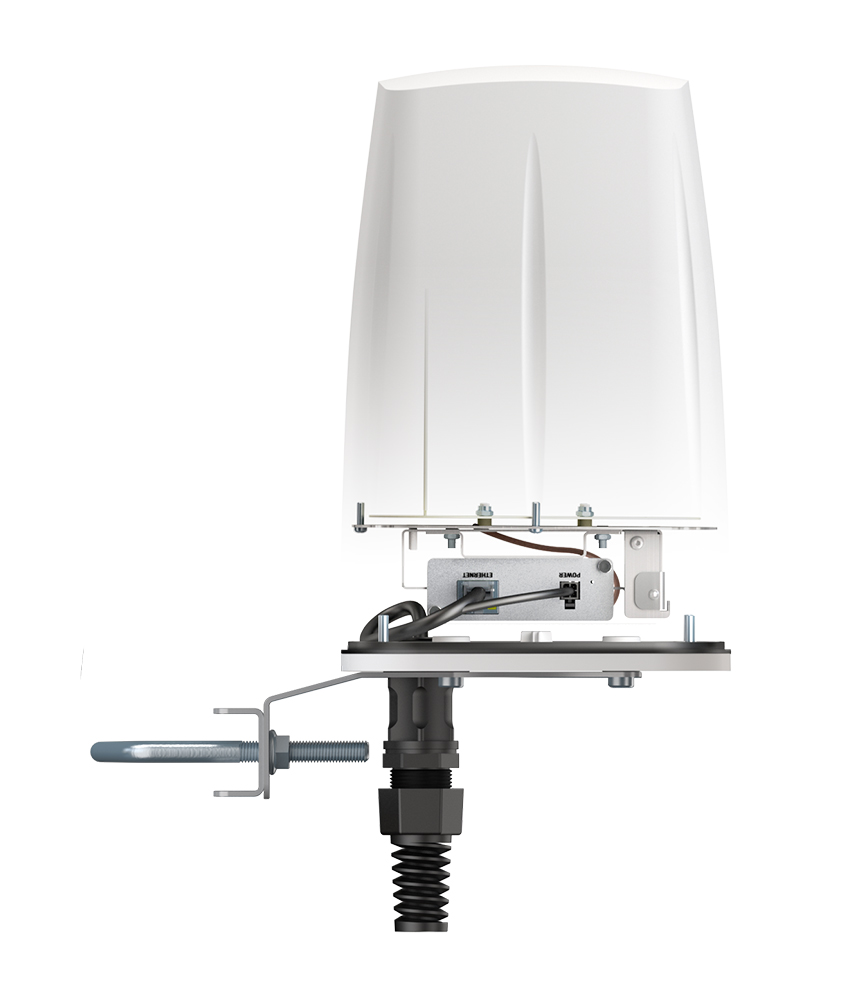

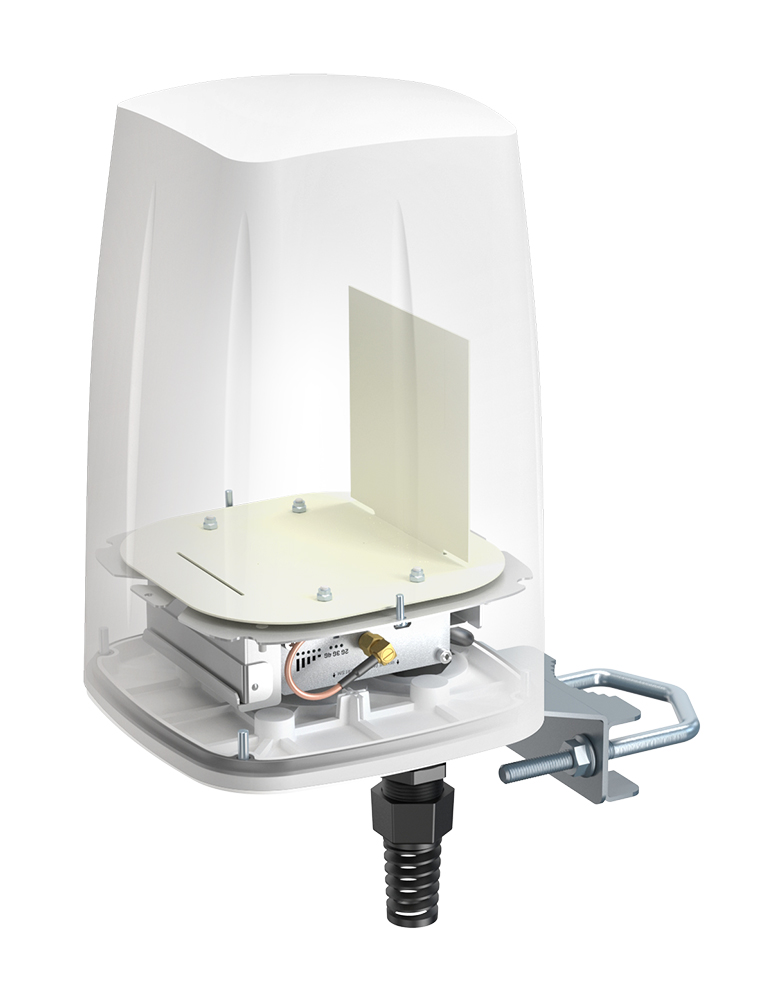

Integrated multi-band LTE omni antenna + place to install Teltonika TRB140 (All-in-one)
QuSpot omni LTE antenna for Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB140 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
SCOPE OF DELIVERY: QuWireless - A140S-A
| Antennas: | Outdoor Antenna |
|---|
Features
- All antennas and Teltonika router integrated in one enclosure
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
Technical Specifications
LTE Antenna Specification
- Frequency:
- 694 - 960 MHz
- 1.7 - 2.2 GHz
- 2.2 - 2.7 GHz
- Gain:
- 694 - 960 MHz: 2 dBi
- 1.7 - 2.2 GHz: 2 dBi
- 2.2 - 2.7 GHz: 4 dBi
- Supported LTE/5G Bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
- VSWR: <1.60, max <2.00
- Beamwidth: 360°/35° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
Mechanical Specification
- Materials: ABS, Aluminum, PTFE
- Connector Type: RJ45
- Protection Rating: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inches
- Weight:
- 1.5 kg
- 3.31 lbs
- Operating Temperature:
- From -40°C to 80°C
- From -40°F to 176°F
- Mast Diameter:
- 40-60 mm
- 1.57-2.36 inches
Frequency Bands
- LTE / 4G GSM: 694 MHz / 960 MHz
- LTE / 4G UMTS: 1710 MHz / 2170 MHz
- LTE / 4G WCS DARS: 2300 MHz / 2400 MHz
- LTE / 4G: 2400 MHz / 2700 MHz
