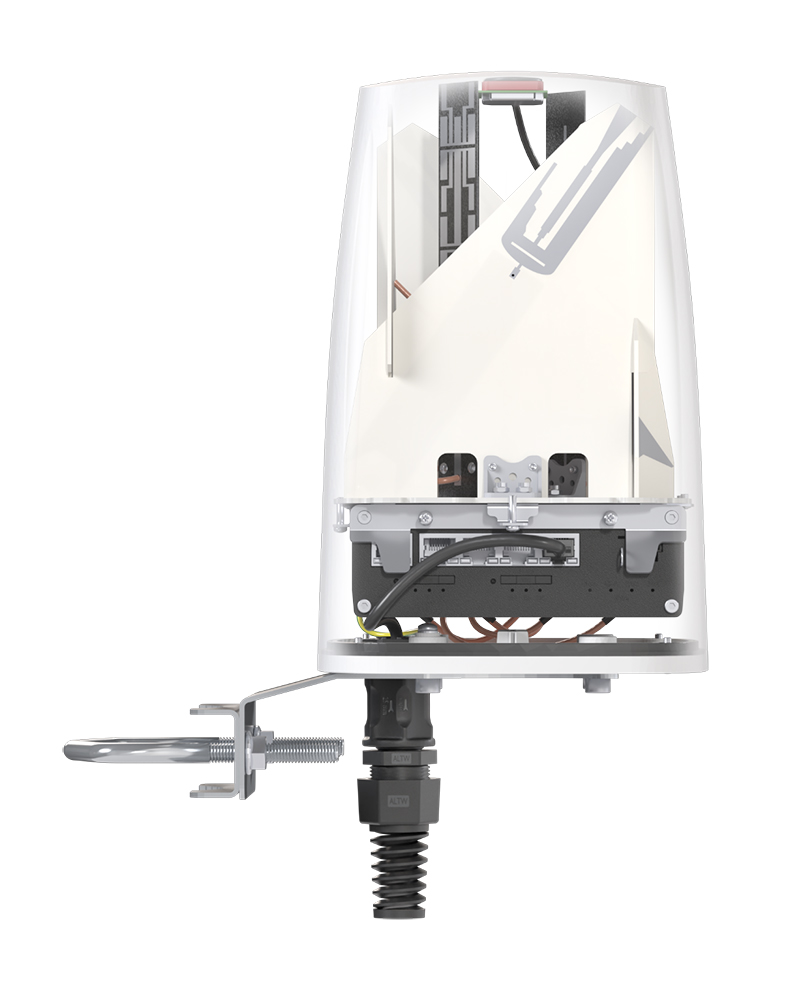

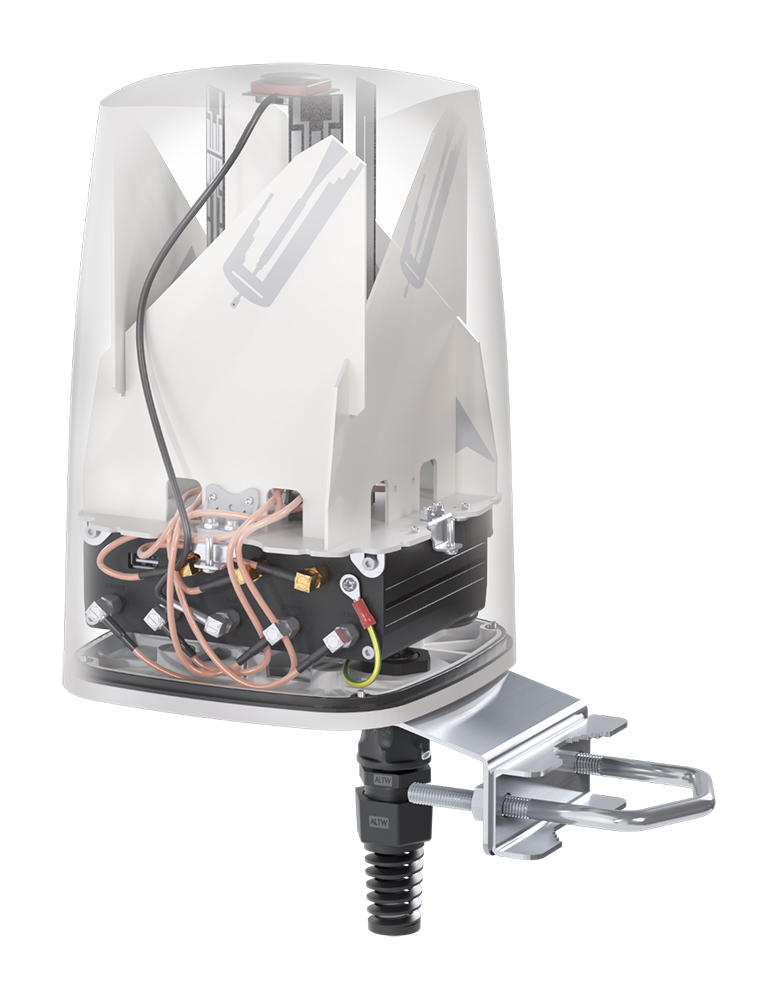

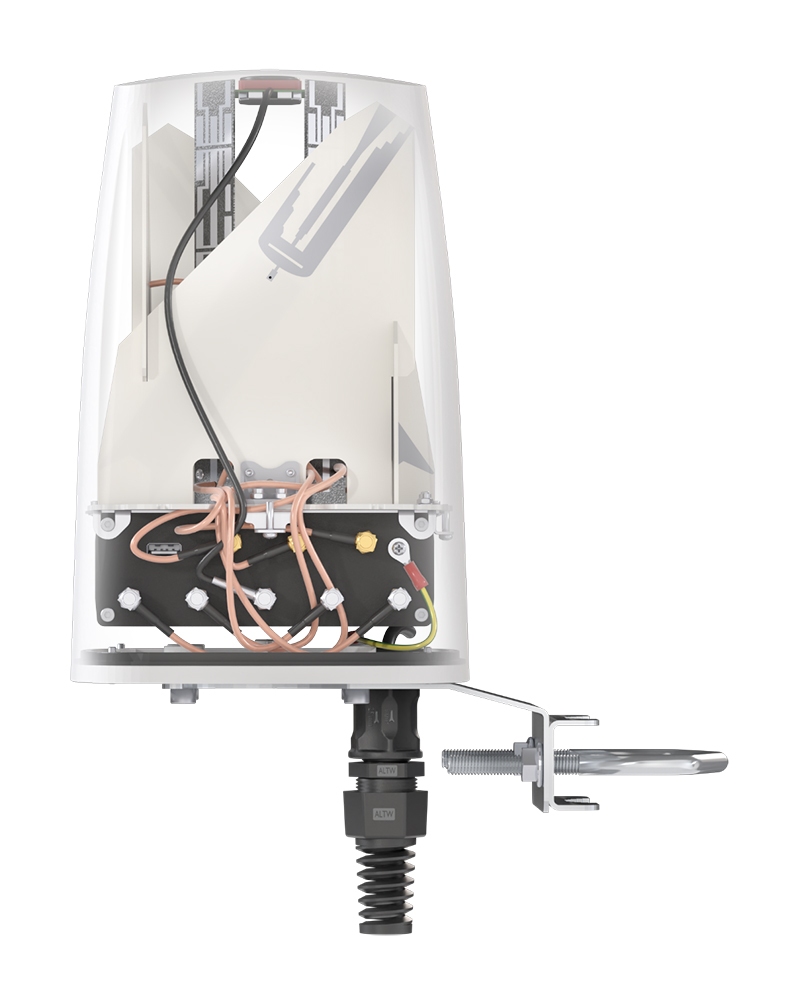

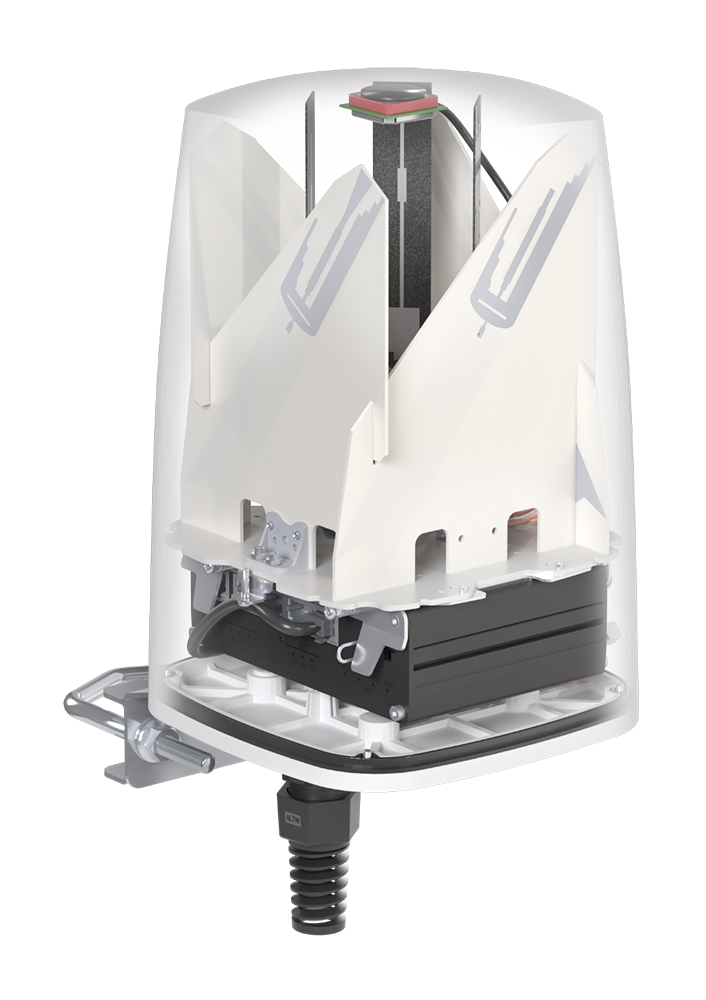

QuWireless - AC50S
£177.76*
Delivery time: 3 - 4 weeks
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL TELTONIKA RUTC50 (ALL-IN-ONE)
QuSpot for RUTC50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTC50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTC50 solutions.
QuSpot for RUTC50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
SCOPE OF DELIVERY: QuWireless - AC50S
| Antennas: | Indoor Antenna, Outdoor Antenna |
|---|
Features
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
- Passive PoE support
Technical Specifications
5G Antenna Specification
- Frequency:
- 617 - 960 MHz
- 1.7 - 2.7 GHz
- 3.3 - 4.3 GHz
- Gain:
- 617 - 960 MHz: 2 dBi
- 1.7 - 2.7 GHz: 4 dBi
- 3.3 - 4.3 GHz: 4.5 dBi
- Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101
- Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
- VSWR: <2.00, max <2.50
- Beamwidth: 360°/25° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
Wi-Fi Antenna Specification
- Frequency:
- 2.4 - 2.5 GHz
- 4.7 - 6 GHz
- Gain:
- 2.4 - 2.5 GHz: 6 dBi
- 4.7 - 6 GHz: 7.5 dBi
- VSWR: <1.70, max <2.00
- Beamwidth: 360°/25° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
- Connector: 3x RPSMA
- Cable Type: RG316
GPS Active Antenna Specification
- Frequency: 1.56 - 1.61 GHz
- VSWR: < 2
- Gain: 3 dBi
- Gain at 3V: 28 dBi
- DC Power Input: 2.5 V ~ 6.5 V
- Power Consumption: 2.5-6.5 mA
- Impedance: 50 Ω
- Polarization: RHCP (Right-Hand Circular Polarization)
- Connector: 1x SMA
- Cable Type: RG174
Mechanical Specification
- Materials: ABS, Aluminum, PTFE
- Connector Type: RJ45
- Protection Class: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inches
- Weight:
- 1.5 kg
- 3.31 lbs
- Operating Temperature:
- From -40°C to 75°C
- From -40°F to 167°F
- Mast Diameter:
- 40-60 mm
- 1.57-2.36 inches
Frequency Bands
- LTE / 4G: 617 MHz / 4300 MHz
- 5G: 617 MHz / 4300 MHz
