QuWireless - AX50S
£165.44*
4 pieces available, delivery time: 5 - 7 working days
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk

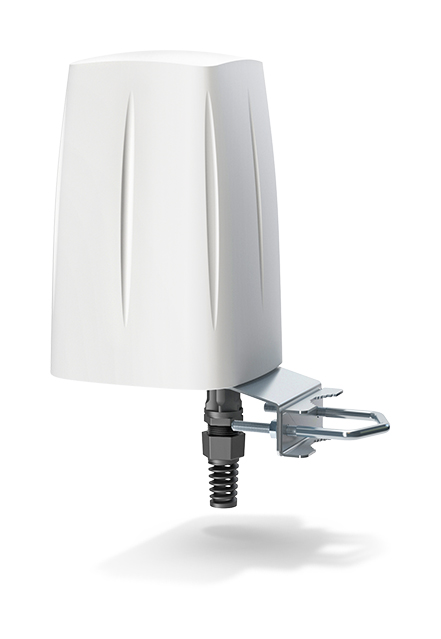

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)

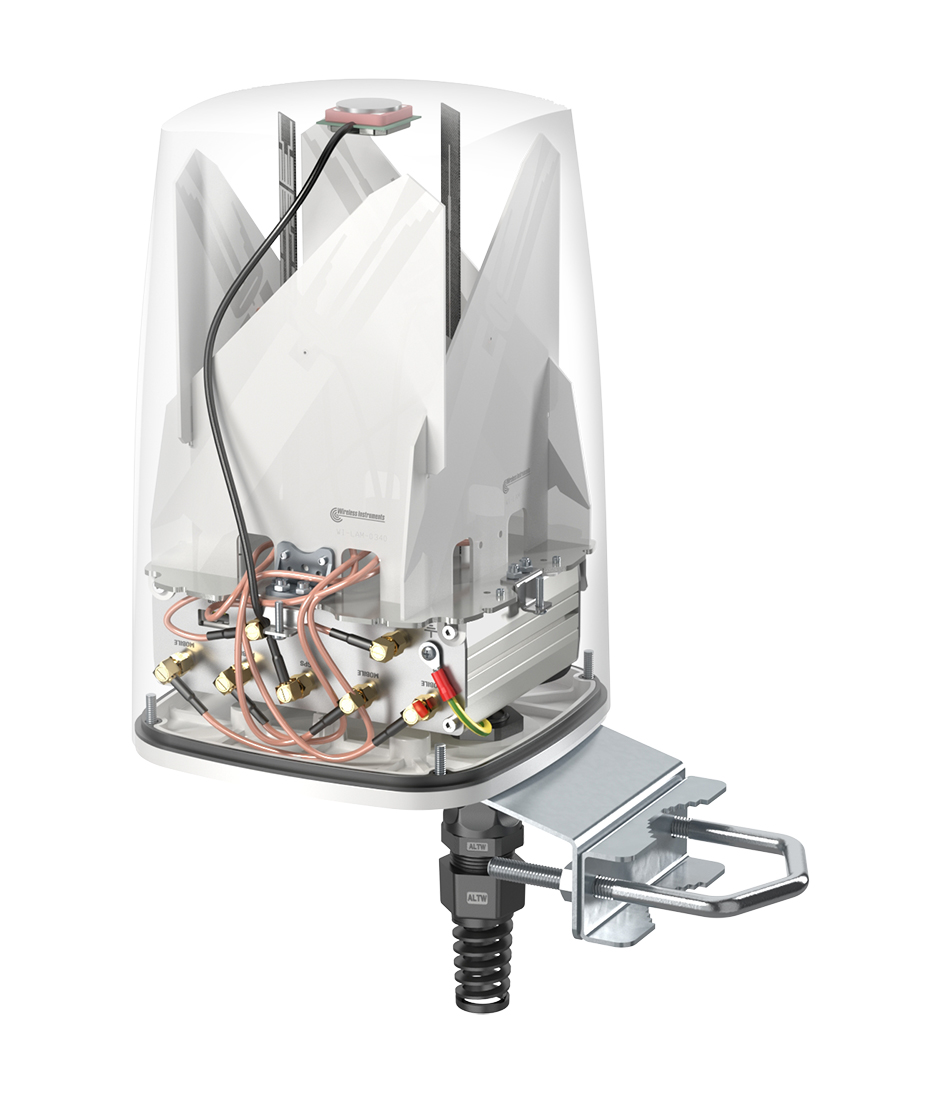

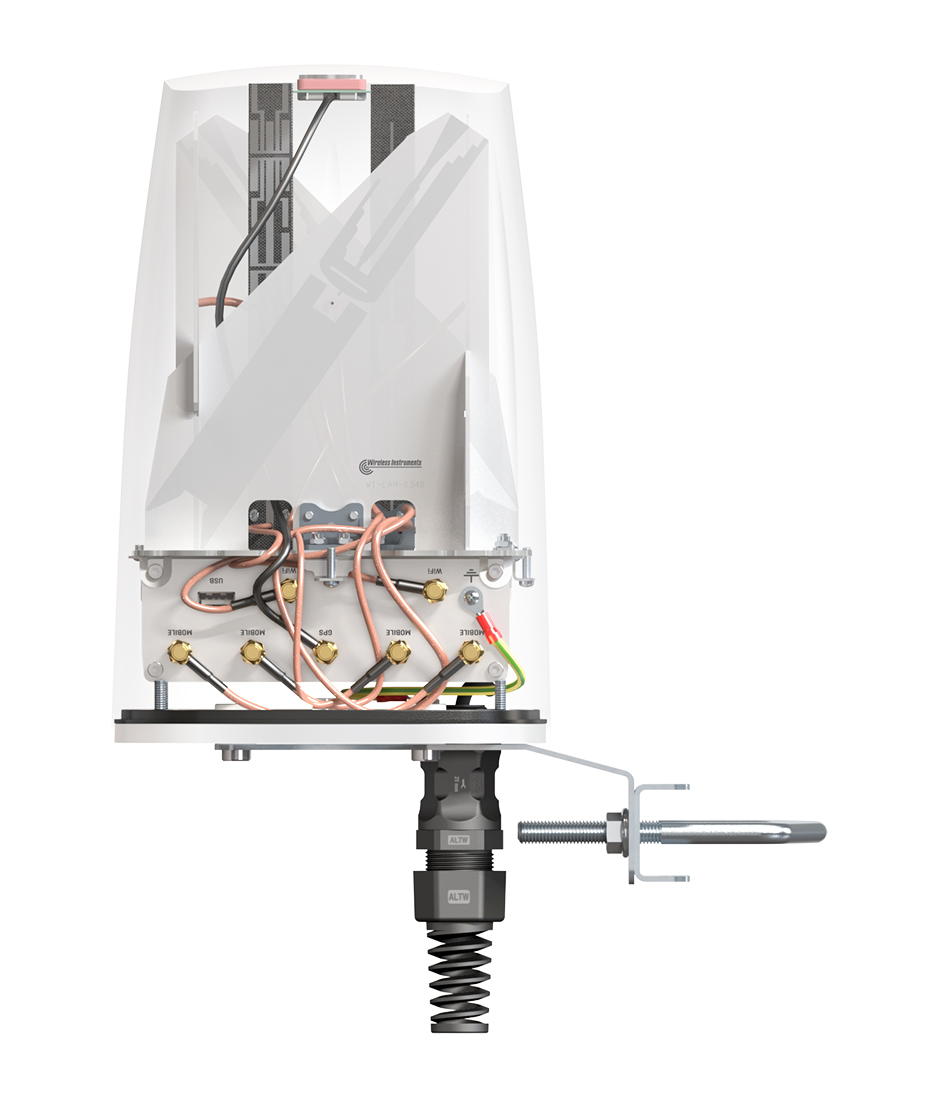

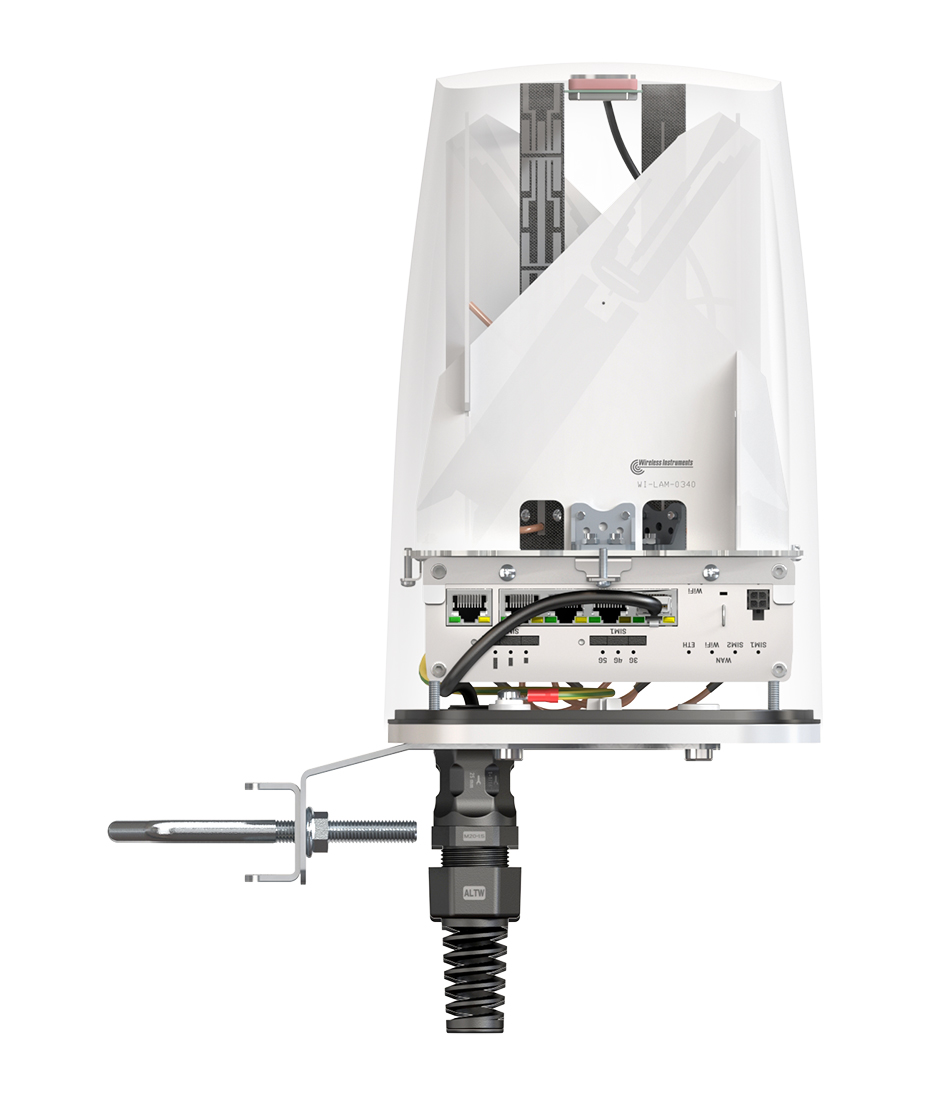

QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high omnidirectional 5G and Wi Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTX50 solutions.
QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
SCOPE OF DELIVERY: QuWireless - AX50S
| Antennas: | Outdoor Antenna |
|---|
Features
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
- Passive PoE support
Technical Specifications
5G Antenna Specification
- Frequency:
- 617 - 960 MHz
- 1.7 - 2.7 GHz
- 3.3 - 4.3 GHz
- Gain:
- 617 - 960 MHz : 2 dBi
- 1.7 - 2.7 GHz : 4 dBi
- 3.3 - 4.3 GHz : 4.5 dBi
- Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101
- Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
- VSWR: <2.00, max <2.50
- Beamwidth: 360°/25° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
- Connector: 4x SMA
- Cable type: RG316
Wi-Fi Antenna Specification
- Frequency:
- 2.4 - 2.5 GHz
- 4.7 - 6 GHz
- Gain:
- 2.4 - 2.5 GHz : 6 dBi
- 4.7 - 6 GHz : 7.5 dBi
- VSWR: <1.70, max <2.00
- Polarization: Vertical
- Impedance: 50 Ω
- Connector: 2x RPSMA
- Cable type: RG316
GPS Active Antenna Specification
- Frequency: 1.56 - 1.61 GHz
- VSWR: < 2
- Gain: 3 dBi
- GAIN 3V: 28 dBi
- DC Power Input: 2.5 V ~ 6.5 V
- Power Consumption: 2.5-6.5mA
- Impedance: 50 Ω
- POLARIZATION: RHCP (Right-hand circular polarization)
- Connector: 1x SMA
- Cable type: RG174
Mechanical Specification
- Materials: ABS, Aluminum, PTFE
- Connector Type: RJ45
- Protection Rating: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inches
- Weight:
- 1.5 kg
- 3.31 lbs
- Operating Temperature:
- -40°C to 75°C
- -40°F to 167°F
- Mast Diameter:
- 40-60 mm
- 1.57-2.36 inches
Frequency Bands
- LTE / 4G: 617 MHz / 4300 MHz
- 5G: 617 MHz / 4300 MHz
