TERZ NITE-RS8-2100
8 Port Unmanaged Industrial Full Gigabit Ethernet Switch with only 22.5 mm installation width
Listprice:
£150.51*
Dealer price - Login
154 pieces available, delivery time: 5 - 7 working days
Prices for larger quantities please inquire.
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Tel: +44 (0) 1276 819333 or e-mail: shop@s-connect.ltd.uk
Manufacturer part number:
NITE-RS8-2100
Our article number:
340093
Questions? We will be happy to advise you! → Contact form
Product information "TERZ NITE-RS8-2100"

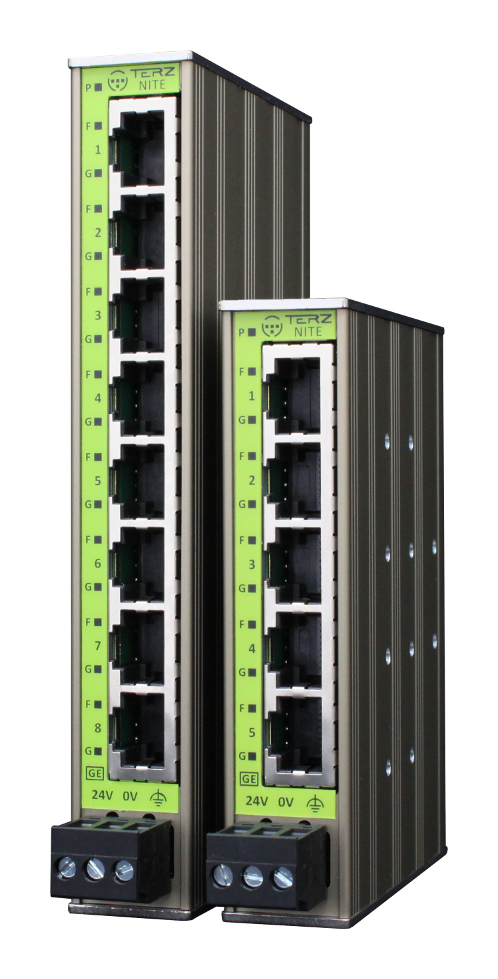

TERZ NITE-RS Full Gigabit Ethernet Switch
Simple and space-saving networking in the control cabinet with high bandwidth.
With a width of only 22.5 mm, the NITE-RS switches impress with their extremely slim and high-quality metal housings. The industrial Ethernet switches for the DIN rail are extremely efficient and save energy.
The Plug&Play switches enable simple and fast commissioning and cost-effective expansion of existing and new network installations. Thanks to the extended temperature range from -40°C to +70°C, a 24 VAC/VDC supply protected against polarity reversal and inrush current limitation, the switches can be used flexibly. Two frame forwarding variants (LLDP/PTCP) provide ideal support for every application and full compatibility for PROFINET networks is ensured.
Simple and space-saving networking in the control cabinet with high bandwidth.
With a width of only 22.5 mm, the NITE-RS switches impress with their extremely slim and high-quality metal housings. The industrial Ethernet switches for the DIN rail are extremely efficient and save energy.
The Plug&Play switches enable simple and fast commissioning and cost-effective expansion of existing and new network installations. Thanks to the extended temperature range from -40°C to +70°C, a 24 VAC/VDC supply protected against polarity reversal and inrush current limitation, the switches can be used flexibly. Two frame forwarding variants (LLDP/PTCP) provide ideal support for every application and full compatibility for PROFINET networks is ensured.
| Connection: | 10 / 100 / 1000 |
|---|---|
| Fieldbus options: | PROFINET |
| IP Level: | IP30 |
| Port Number: | 8 Ports |
| Temperature Range: | -40°C to 70°C |
| Management: | unmanaged |
Features
- Flexible use with 24 VAC/VDC
- 9 kB Jumbo Frames Support
- Minimum installation width 22.5mm
- Inrush current limitation
- Temperature range -40 to +70°C
- Stable DIN rail mounting
- Reverse polarity protected
- PROFINET suitable
Techncial details
General
Switch: IEEE802.3 Store and Forward; non-blocking wire speed
Auto-negotiation, auto-MDI-X, auto-polarity: Yes
Frame size: 9.216 bytes Jumbo Frames
MAC table size: 2,000 addresses
Quality of Service: Yes - 8 priority queues
Energy Efficient Ethernet: No
Flow Control: No
PROFINET suitable: Yes
Power supply / electronics
Rated voltage: Vin 24 VAC 50/60 Hz / 24 VDC
Perm. voltage range: 12 to 28 VAC / 9 to 36 VDC
Connection type: 3-pole, pluggable screw connection (+ - FE)
Conductor cross-section: 0.75 to 2.5 mm² (AWG 20 to 13)
Supply circuit: SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiting: Yes
Input fuse: Yes, switching capacity 50 A @ 125VAC / VDC
Reverse polarity protection: Yes
PCB Conformal Coating: No
Protection Class: III
Insulation: 0.75 kVDC; Vin ↔ Ethernet Ports | Vin ↔ Housing
Mechanical properties
Housing material: Anodised aluminium, stainless steel
Mounting type: M4 hole for wall mounting
Protection class (operation): IP30 (not part of UL approval)
Ethernet interfaces
IEEE standards: 802.3 10BaseT, 802.3u 100BaseT(X)
Isolation: 0.75 kVDC; Ethernet Port ↔ Housing | Port ↔ Port
Connection type: RJ45
Port count | Speed: 5,8 ports | 10/100/1000 Mbit/s
Cable length: 100 m (twisted pair, 0.14 mm² - 0.22 mm², Cat 5)
EMC and environmental specification
Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 85°C
Relative humidity (operating): 0%-95% (non-condensing)
Relative humidity (storage): 0%-95% (non-condensing)
Air pressure (operating): 2,000 m (795 hPa)
EMC immunity: DIN EN - 50121-3-2, 61000-6-2, 55024
EMC interference emission: DIN EN - 50121-3-2, 61000-6-4, 55032
Mechanical stability: DIN EN 61373
Fire protection: DIN EN 45545
Declaration of conformity and certifications
CE, DIN EN 60950-1
Status and diagnostic indicators
LED: Power | Link/Activity per port
Products
General
Switch: IEEE802.3 Store and Forward; non-blocking wire speed
Auto-negotiation, auto-MDI-X, auto-polarity: Yes
Frame size: 9.216 bytes Jumbo Frames
MAC table size: 2,000 addresses
Quality of Service: Yes - 8 priority queues
Energy Efficient Ethernet: No
Flow Control: No
PROFINET suitable: Yes
| Portnumber (RJ45) | 5 | 8 |
| MTBF (SN 29500, Mio. h) |
1.829 | 1.345 |
| Frame Forwarding (Art.-Nr.) | xxxxx0 | xxxxx1 |
| LLDP, PTCP Delay 01:80:C2:00:00:0E | Forwarding | Blocking |
| RSTP BPDU 01:80:C2:00:00:00 | Forwarding | Forwarding |
Power supply / electronics
Rated voltage: Vin 24 VAC 50/60 Hz / 24 VDC
Perm. voltage range: 12 to 28 VAC / 9 to 36 VDC
Connection type: 3-pole, pluggable screw connection (+ - FE)
Conductor cross-section: 0.75 to 2.5 mm² (AWG 20 to 13)
Supply circuit: SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiting: Yes
Input fuse: Yes, switching capacity 50 A @ 125VAC / VDC
Reverse polarity protection: Yes
PCB Conformal Coating: No
Protection Class: III
Insulation: 0.75 kVDC; Vin ↔ Ethernet Ports | Vin ↔ Housing
| Portnumber(RJ45) | 5 | 8 | |
| Power consumption (W) Min | Max |
@24VDC @24VAC |
1,5 | 3,2 1,8 | 3,9 |
1,5 | 3,5 1,8 | 4,2 |
| Input current (mA) Min | Max |
@24VDC @24VAC |
60 | 130 120 | 260 |
60 | 145 120 | 290 |
| Inrush current(A) | 16 | 16 | |
Mechanical properties
Housing material: Anodised aluminium, stainless steel
Mounting type: M4 hole for wall mounting
Protection class (operation): IP30 (not part of UL approval)
| Portnumber (RJ45) | 5 | 8 |
| Wide (mm) | 22,5 | 22,5 |
| Height (mm) | 103 | 145 |
| Depth (mm) | 77,4 | 77,4 |
| Weight (g) | 225 | 295 |
Ethernet interfaces
IEEE standards: 802.3 10BaseT, 802.3u 100BaseT(X)
Isolation: 0.75 kVDC; Ethernet Port ↔ Housing | Port ↔ Port
Connection type: RJ45
Port count | Speed: 5,8 ports | 10/100/1000 Mbit/s
Cable length: 100 m (twisted pair, 0.14 mm² - 0.22 mm², Cat 5)
EMC and environmental specification
Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 85°C
Relative humidity (operating): 0%-95% (non-condensing)
Relative humidity (storage): 0%-95% (non-condensing)
Air pressure (operating): 2,000 m (795 hPa)
EMC immunity: DIN EN - 50121-3-2, 61000-6-2, 55024
EMC interference emission: DIN EN - 50121-3-2, 61000-6-4, 55032
Mechanical stability: DIN EN 61373
Fire protection: DIN EN 45545
Declaration of conformity and certifications
CE, DIN EN 60950-1
Status and diagnostic indicators
LED: Power | Link/Activity per port
Products
| Available models | ||
| Article | Art.-Nr. | Specification |
| NITE-RS5-2100 | 221400 | 5xRJ45, GE, 24 V |
| NITE-RS8-2100 | 221600 | 8xRJ45, GE, 24 V |
| NITE-RS5-2101 | 221401 | 5xRJ45, GE, 24 V, LLDP Blocking |
| NITE-RS8-2101 | 221601 | 8xRJ45, GE, 24 V, LLDP Blocking |
